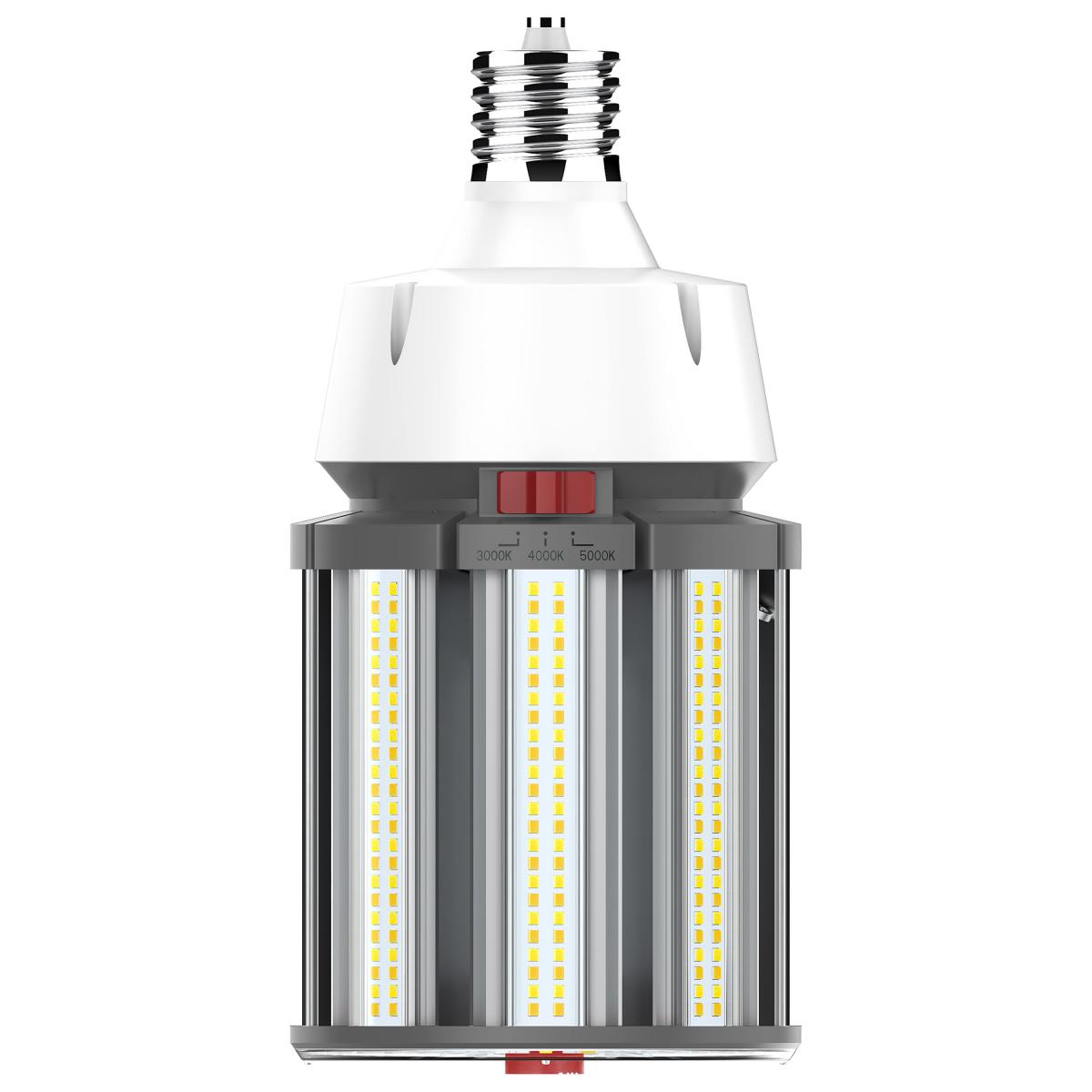

100W/LED/CCT/100-277V/EX39
100/80/63 Wattage Selectable; LED HID Replacement; CCT Selectable; Type B; Ballast Bypass; Extended Mogul base; 100-277 Volt; ColorQuick Technology; PowerQuick Technology
Specifications
General
| Status |
Active |
| Watts |
100W/80W/63W |
| Incandescent Equivalent |
400W |
| HID Equivalent |
400W/320W/250W |
| Volts |
120V-277V |
| Shape |
Corncob |
| Base |
Mogul Extended |
| ANSI Base |
EX39 |
| Finish |
White |
| CCT (Kelvin) |
3000K/4000K/5000K |
| Temperature |
Warm to Cool White |
| CRI |
80+ |
| Lumens |
14000L/11200L/8820L |
| Beam Spread |
300 |
| Dimmable |
Yes-Dimmable |
| Hours Rated |
50000 |
| Product Category |
Corncob |
| Lamp Type |
Corncob |
| Technology |
LED |
| Min Compartment Size |
Length: 9.85 in. Width: 9.85 in. Height: 11.54 in. |
| Ballasting Requirements |
Ballast Bypass |
Electrical
| Watts |
100W/80W/63W |
| Incandescent Equivalent |
400W |
| HID Equivalent |
400W/320W/250W |
| Volts |
120V-277V |
| Ballasting Requirements |
Ballast Bypass |
| Operating Frequency |
50/60Hz |
| CCT (Kelvin) |
3000K/4000K/5000K |
| Temperature |
Warm to Cool White |
| CRI |
80+ |
| Lumens |
14000L/11200L/8820L |
| Beam Spread |
300 |
| Dimmable |
Yes-Dimmable |
| Dimming Type |
Step Dimming |
| Dimming Note |
Only dimmable through wattage selection switch on lamp |
| Power Factor |
>0.9 |
| Hours Rated |
50000 |
| Operating Position |
Base Up or Down |
| Surge Protection |
Built-in surge protection - 4KV |
| THD |
14.50% |
| Operating Temperature |
-40C (-40F) to +60C (+140F) |
Physical
| MOL |
10.55 |
| MOD |
5.11 |
| Shape |
Corncob |
| Base |
Mogul Extended |
| ANSI Base |
EX39 |
| Finish |
White |
| Lens Material |
Plastic |
| Housing Color |
Dark Gray |
| Weight (lb.) |
3.12 |
Additional Information
| Additional Info |
Safety cable provided with S23143, S23144, S23145 ONLY and is required upon installation of these high bay, base-up applications. (Please See Instructions) |
| Min Compartment Size |
Length: 9.85 in. Width: 9.85 in. Height: 11.54 in. |
| Rated For Enclosed Fixture |
Yes |
| Installation Notes |
Not for use in vapor tight fixtures. |
| Warranty |
5-Years |
Compliance
| Safety Listing |
cULus - Certified; cULus - Classified; cULus - Listed |
| Location Rating |
Damp |
| DLC Approved |
Yes |
| DLC ID |
S-3KHWIB |
| RoHS Compliant |
Yes |
| FCC Compliant |
Yes |
| SDS Sheet |
LED Lamp |
Packaging
| Each UPC |
045923231445 |
| Each Quantity |
1 |
| Each Length (in.) |
12.20 |
| Each Width (in.) |
5.51 |
| Each Height (in.) |
5.51 |
| Each Weight (lb.) |
3.72 |
| Each Cube (CuFt.) |
0.2143 |
| Pack Type |
Box |
| Inner Quantity |
0 |
| Inner Length (in.) |
0.00 |
| Inner Width (in.) |
0.00 |
| Inner Height (in.) |
0.00 |
| Inner Weight (lb.) |
0.00 |
| Inner Cube (CuFt.) |
0.0000 |
| Case UPC |
10045923231442 |
| Case Quantity |
4 |
| Case Length (in.) |
12.60 |
| Case Width (in.) |
11.61 |
| Case Height (in.) |
11.81 |
| Case Weight (lb.) |
16.08 |
| Case Cube (CuFt.) |
0.9998 |
