14.5WLED/CDL/4/ADJ-CCT/40D

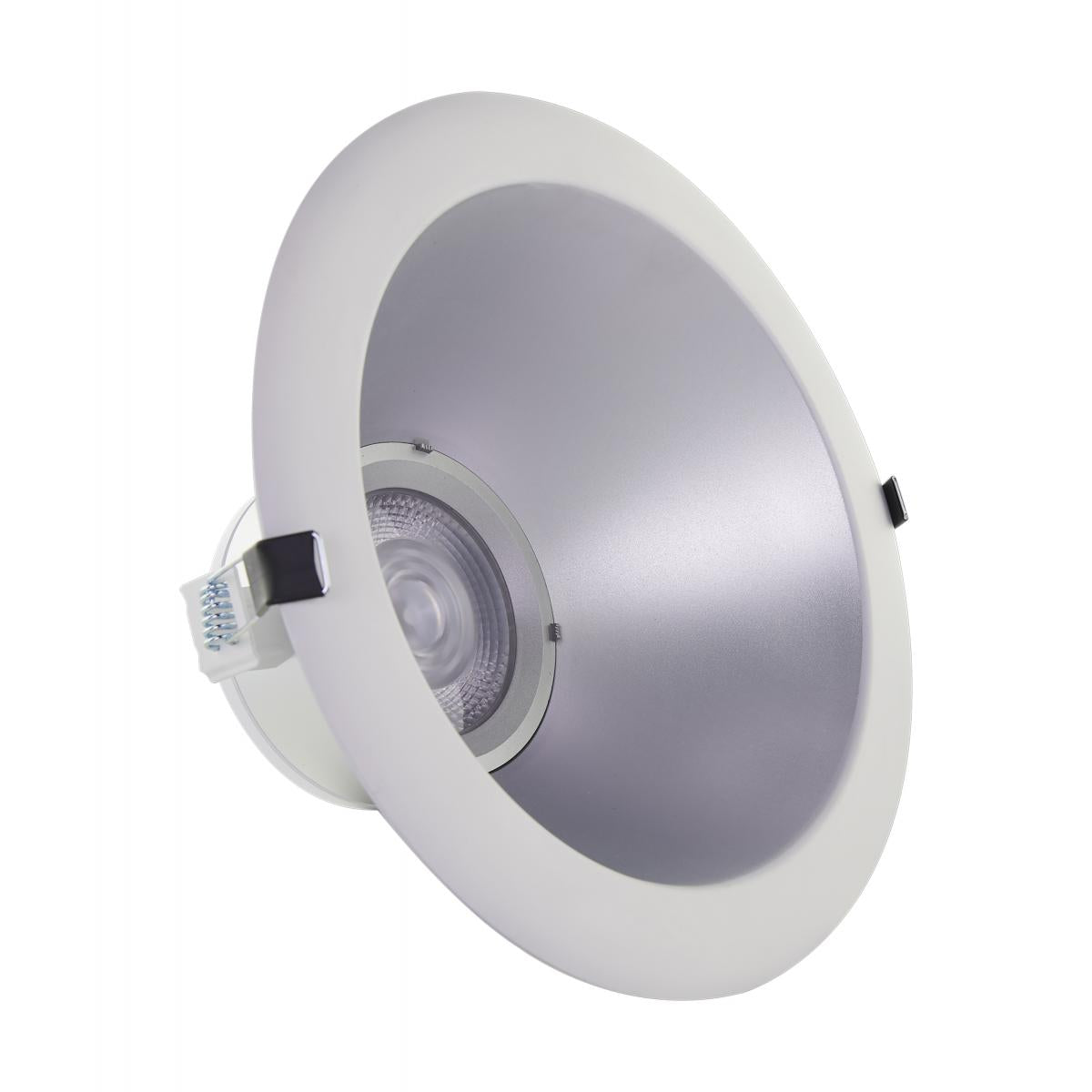

14.5 Watt Commercial LED Downlight; 4 in.; Color Adjustable; Lumen Adjustable; 120-277 volt
Specifications
General
| Status |
Active |
| Recessed Can Size |
4 in. |
| Wattage |
8.5W/11W/14.5W |
| Voltage |
120V-277V |
| Finish |
Silver |
| CCT (Kelvin) |
2700K/3000K/3500K/4000K/5000K |
| Color Temperature |
Warm to Cool White |
| Lumen Output |
600L/800L/1020L |
| Indoor or Outdoor Fixture |
Indoor |
Specifications
| Technology |
LED |
| Wattage |
8.5W/11W/14.5W |
| Lumen Output |
600L/800L/1020L |
| CCT (Kelvin) |
2700K/3000K/3500K/4000K/5000K |
| Color Temperature |
Warm to Cool White |
| CRI |
80+ |
| Voltage |
120V-277V |
| Beam Angle |
40 |
| Rated Hours |
50000 |
| Operating Temperature |
-20C (-4F) to +40C (+104F) |
| Dimmable |
Yes-Dimmable |
| Dimming Note |
0-10V Dimming Only |
Dimensions
| Width (in.) |
4.65 |
| Height (in.) |
2.69 |
| Weight (lb.) |
1.23 |
Compliance
| Safety Listing |
cETLus - Listed |
| Location Rating |
Damp |
| ENERGY STAR |
No |
| DLC Approved |
No |
| Air Tight Rated |
No |
| IC Rated |
Yes |
| California Prop 65 |
Lead |
| RoHS Compliant |
Yes |
| FCC Compliant |
Yes |
| Canadian Standard ICES-005 |
Class B |
| SDS Sheet |
LED Lamp |
Additional Information
| Specification Note |
Default wattage setting is 14.5W |
| Installation Notes |
Can be installed with or without the rough-in plate (80-959) |
| Warranty |
5-Years |
Packaging
| Each UPC |
045923118142 |
| Each Quantity |
1 |
| Each Length (in.) |
7.48 |
| Each Width (in.) |
5.12 |
| Each Height (in.) |
4.92 |
| Each Weight (lb.) |
1.45 |
| Each Cube (CuFt.) |
0.1090 |
| Pack Type |
Box |
| Inner Quantity |
0 |
| Inner Length (in.) |
0.00 |
| Inner Width (in.) |
0.00 |
| Inner Height (in.) |
0.00 |
| Inner Weight (lb.) |
0.00 |
| Inner Cube (CuFt.) |
0.0000 |
| Case UPC |
10045923118149 |
| Case Quantity |
4 |
| Case Length (in.) |
15.55 |
| Case Width (in.) |
10.83 |
| Case Height (in.) |
5.71 |
| Case Weight (lb.) |
6.58 |
| Case Cube (CuFt.) |
0.5565 |
