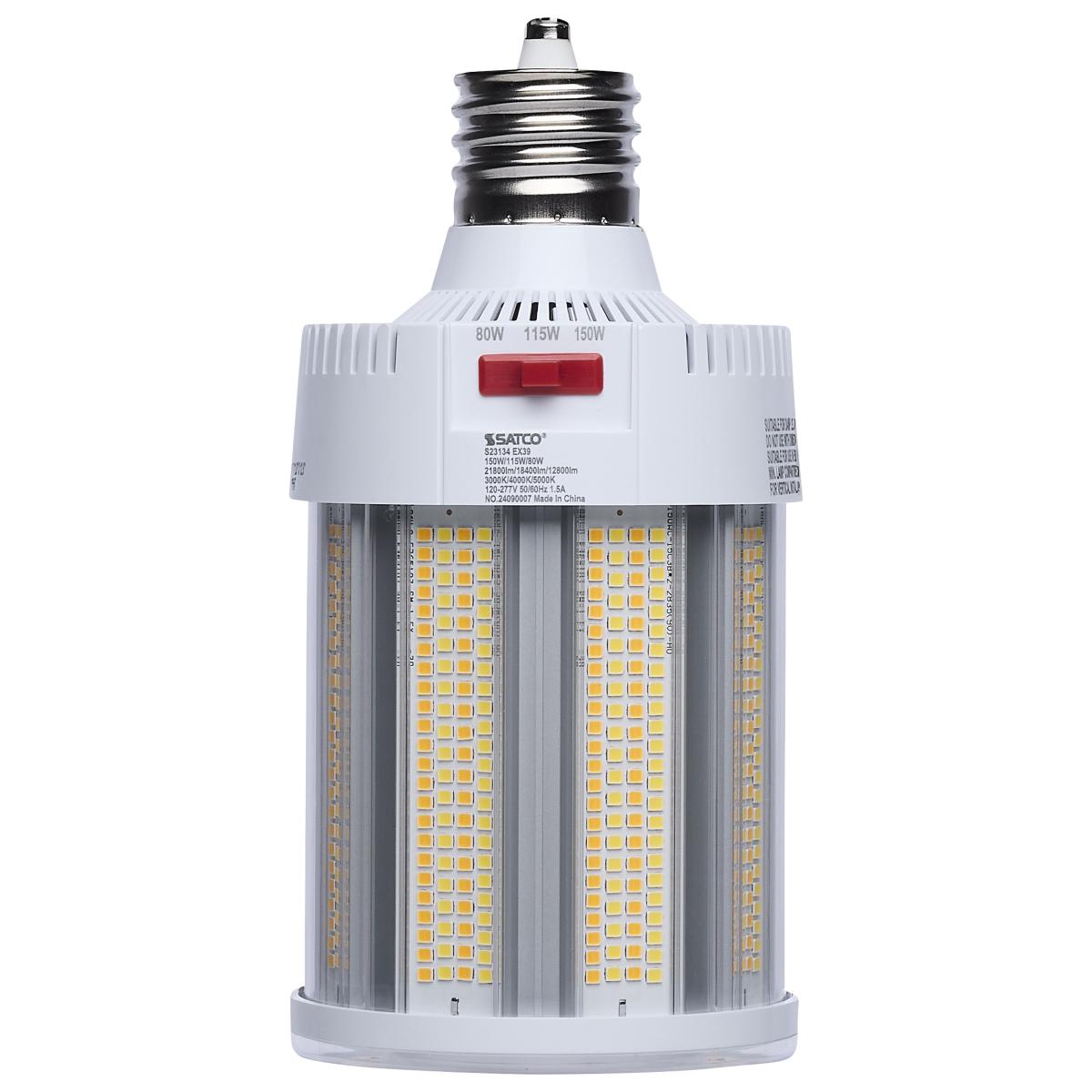

150W/LED/CCT/100-277V/EX39
150/115/80 Watt; 30K/40K/50K CCT; Field Selectable LED; Corncob; Mogul Extended Base; 120-277 Ranged Voltage; 450 Watt HID Replacement
Specifications
General
| Status |
Active |
| Watts |
150W/115W/80W |
| HID Equivalent |
450W |
| Volts |
120V-277V |
| Shape |
Corncob |
| Base |
Mogul Extended |
| ANSI Base |
EX39 |
| Finish |
White |
| CCT (Kelvin) |
3000K/4000K/5000K |
| Temperature |
Soft White to Natural Light |
| CRI |
80+ |
| Lumens |
24812L/19816L/14270L |
| Beam Spread |
280 |
| Dimmable |
Yes-Dimmable |
| Hours Rated |
50000 |
| Product Category |
LED HID |
| Lamp Type |
LED HID |
| Technology |
LED |
| Min Compartment Size |
Length: 18.50 in. Width:12.60 in. Height: 12.60 in. |
| Ballasting Requirements |
Ballast Bypass |
Electrical
| Watts |
150W/115W/80W |
| HID Equivalent |
450W |
| Volts |
120V-277V |
| Ballasting Requirements |
Ballast Bypass |
| Operating Frequency |
60Hz |
| CCT (Kelvin) |
3000K/4000K/5000K |
| Temperature |
Soft White to Natural Light |
| CRI |
80+ |
| Lumens |
24812L/19816L/14270L |
| Beam Spread |
280 |
| Dimmable |
Yes-Dimmable |
| Dimming Type |
Step Dimming |
| Dimming Note |
Only dimmable through wattage selection switch on lamp |
| Power Factor |
0.99 |
| Hours Rated |
50000 |
| Operating Position |
Universal |
| Surge Protection |
Built-in surge protection - 6KV |
| THD |
<20% |
| Operating Temperature |
-40C (-40F) to +50C (+122F) |
Physical
| MOL |
8.3 |
| MOD |
4.1 |
| Shape |
Corncob |
| Base |
Mogul Extended |
| ANSI Base |
EX39 |
| Finish |
White |
| Lens Finish |
Clear |
| Lens Material |
Polycarbonate (PC) |
| Housing Color |
White |
| Weight (lb.) |
1.72 |
Additional Information
| Min Compartment Size |
Length: 18.50 in. Width:12.60 in. Height: 12.60 in. |
| Rated For Enclosed Fixture |
Yes |
| IP Rating |
IP54 |
| Installation Notes |
Not for use in vapor tight fixtures. |
| Warranty |
5-Years |
Compliance
| Safety Listing |
cULus - Listed; cULus - Classified |
| Location Rating |
Damp |
| DLC Approved |
Yes |
| DLC ID |
S-5PHZP8 |
| RoHS Compliant |
Yes |
| FCC Compliant |
Yes |
| SDS Sheet |
LED Lamp |
Packaging
| Each UPC |
045923231346 |
| Each Quantity |
1 |
| Each Length (in.) |
4.33 |
| Each Width (in.) |
4.33 |
| Each Height (in.) |
10.04 |
| Each Weight (lb.) |
1.94 |
| Each Cube (CuFt.) |
0.1089 |
| Pack Type |
Box |
| Inner Quantity |
0 |
| Inner Length (in.) |
0.00 |
| Inner Width (in.) |
0.00 |
| Inner Height (in.) |
0.00 |
| Inner Weight (lb.) |
0.00 |
| Inner Cube (CuFt.) |
0.0000 |
| Case UPC |
10045923231343 |
| Case Quantity |
12 |
| Case Length (in.) |
18.11 |
| Case Width (in.) |
13.78 |
| Case Height (in.) |
10.63 |
| Case Weight (lb.) |
28.60 |
| Case Cube (CuFt.) |
1.5352 |
