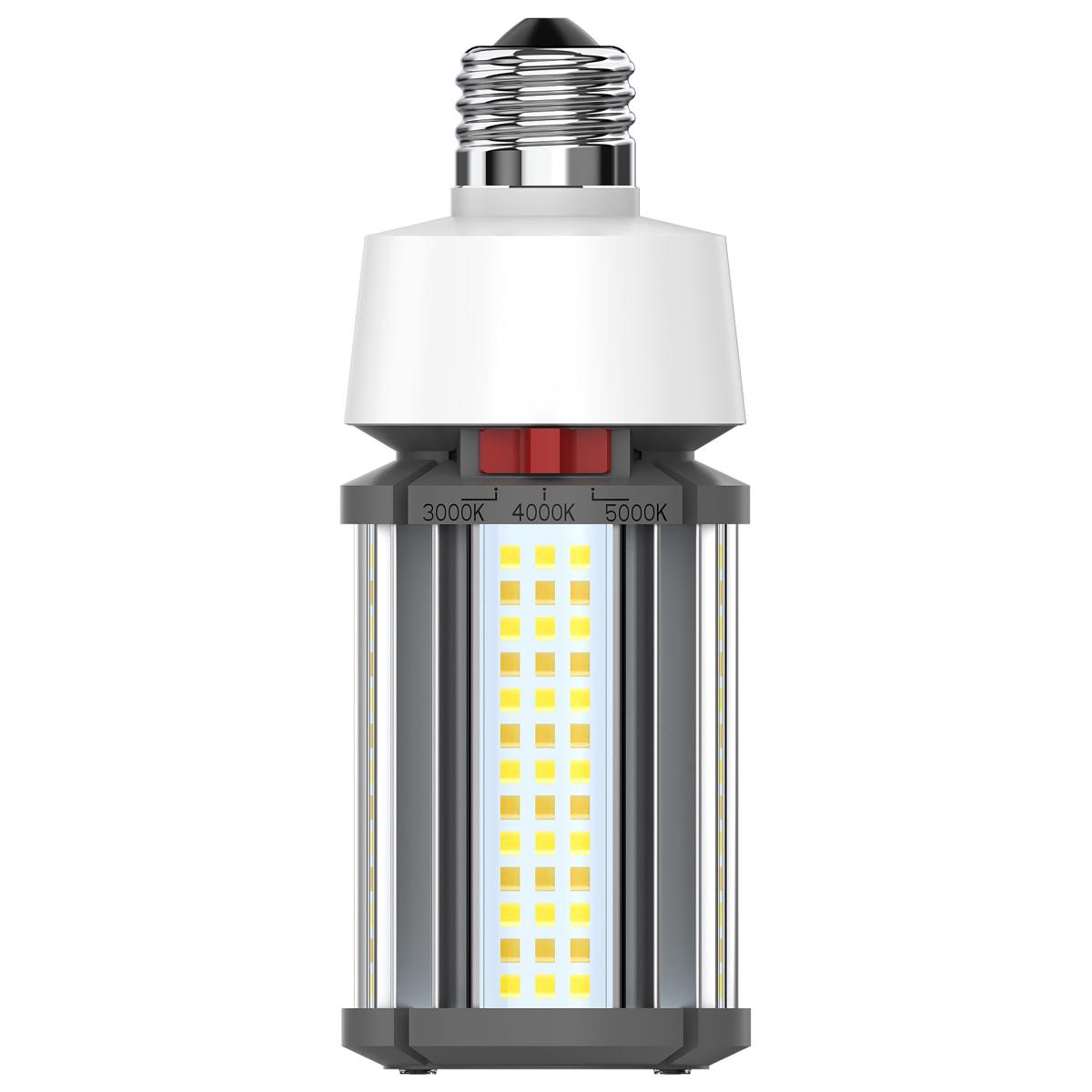

18W/LED/CCT/277-347V/E26
18 Watt LED HID Replacement; CCT Selectable; Type B; Ballast Bypass; Medium Base; 277-347 Volt; ColorQuick Technology
Specifications
General
| Status |
Active |
| Watts |
18W |
| Incandescent Equivalent |
90W |
| HID Equivalent |
70W |
| Volts |
277V-347V |
| Shape |
Corncob |
| Base |
Medium |
| ANSI Base |
E26 |
| Finish |
White |
| CCT (Kelvin) |
3000K/4000K/5000K |
| Temperature |
Warm to Cool White |
| CRI |
80+ |
| Lumens |
2340L/2520L/2430L |
| Beam Spread |
300 |
| Dimmable |
Non-Dimmable |
| Hours Rated |
50000 |
| Product Category |
Corncob |
| Lamp Type |
Corncob |
| Technology |
LED |
| Ballasting Requirements |
Ballast Bypass |
Electrical
| Watts |
18W |
| Incandescent Equivalent |
90W |
| HID Equivalent |
70W |
| Volts |
277V-347V |
| Ballasting Requirements |
Ballast Bypass |
| Operating Frequency |
50/60Hz |
| CCT (Kelvin) |
3000K/4000K/5000K |
| Temperature |
Warm to Cool White |
| CRI |
80+ |
| Lumens |
2340L/2520L/2430L |
| Beam Spread |
300 |
| Dimmable |
Non-Dimmable |
| Power Factor |
0.9 |
| Hours Rated |
50000 |
| Operating Position |
Universal |
| Surge Protection |
Built-in surge protection - 4KV |
| Operating Temperature |
-30C (-22F) to +45C (+113F) |
Physical
| MOL |
6.22 |
| MOD |
2.36 |
| Shape |
Corncob |
| Base |
Medium |
| ANSI Base |
E26 |
| Finish |
White |
| Lens Finish |
Clear |
| Lens Material |
Plastic |
| Housing Color |
Dark Gray |
| Photocell or Sensor |
No |
| Weight (lb.) |
0.57 |
Additional Information
| Rated For Enclosed Fixture |
Yes |
| IP Rating |
IP64 |
| Installation Notes |
Not for use in vapor tight fixtures. |
| Warranty |
5-Years |
Compliance
| Safety Listing |
cULus - Certified; cULus - Classified; cULus - Listed |
| Location Rating |
Damp |
| DLC Approved |
No |
| California Status |
Non-Compliant |
| Title 20 / 24 Status |
Non-Compliant |
| RoHS Compliant |
Yes |
| FCC Compliant |
Yes |
| SDS Sheet |
LED Lamp |
Packaging
| Each UPC |
045923231605 |
| Each Quantity |
1 |
| Each Length (in.) |
8.26 |
| Each Width (in.) |
2.83 |
| Each Height (in.) |
2.83 |
| Each Weight (lb.) |
0.70 |
| Each Cube (CuFt.) |
0.0383 |
| Pack Type |
Box |
| Inner UPC |
20045923231609 |
| Inner Quantity |
12 |
| Inner Length (in.) |
12.00 |
| Inner Width (in.) |
9.00 |
| Inner Height (in.) |
8.85 |
| Inner Weight (lb.) |
9.80 |
| Inner Cube (CuFt.) |
0.5531 |
| Case UPC |
10045923231602 |
| Case Quantity |
24 |
| Case Length (in.) |
18.90 |
| Case Width (in.) |
12.60 |
| Case Height (in.) |
9.65 |
| Case Weight (lb.) |
19.87 |
| Case Cube (CuFt.) |
1.3299 |
