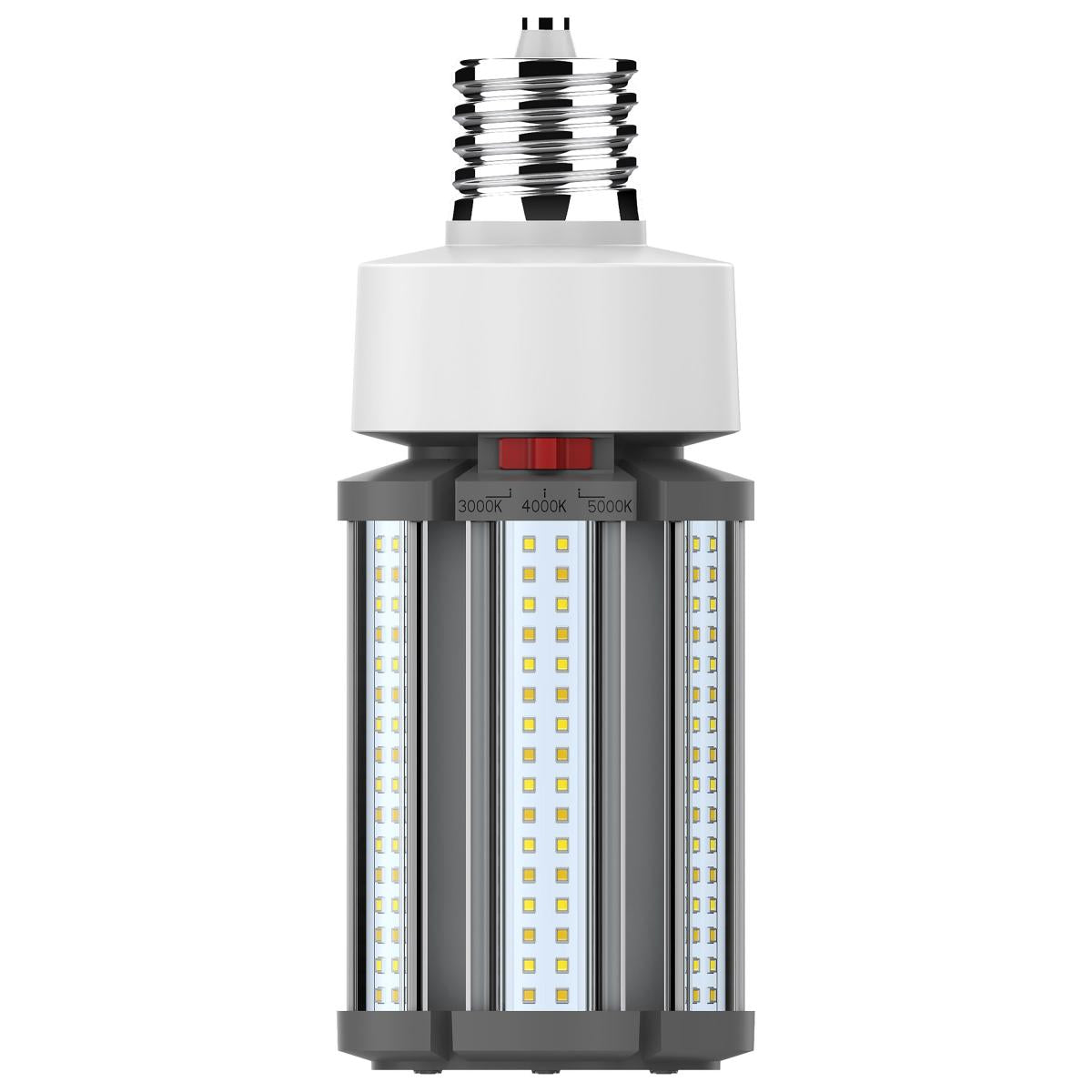

36W/LED/CCT/277-480V/EX39
36 Watt LED HID Replacement; CCT Selectable; Type B; Ballast Bypass; Mogul Extended Base; 277-480 Volt; ColorQuick Technology
Specifications
General
| Status |
Active |
| Watts |
36W |
| Incandescent Equivalent |
125W |
| HID Equivalent |
175W |
| Volts |
277V-480V |
| Shape |
Corncob |
| Base |
Mogul Extended |
| ANSI Base |
EX39 |
| Finish |
White |
| CCT (Kelvin) |
3000K/4000K/5000K |
| Temperature |
Warm to Cool White |
| CRI |
80+ |
| Lumens |
4680L/5040L/4860L |
| Beam Spread |
300 |
| Dimmable |
Yes-Dimmable |
| Hours Rated |
50000 |
| Product Category |
Corncob |
| Lamp Type |
Corncob |
| Technology |
LED |
| Ballasting Requirements |
Ballast Bypass |
Electrical
| Watts |
36W |
| Incandescent Equivalent |
125W |
| HID Equivalent |
175W |
| Volts |
277V-480V |
| Ballasting Requirements |
Ballast Bypass |
| Operating Frequency |
50/60Hz |
| CCT (Kelvin) |
3000K/4000K/5000K |
| Temperature |
Warm to Cool White |
| CRI |
80+ |
| Lumens |
4680L/5040L/4860L |
| Beam Spread |
300 |
| Dimmable |
Yes-Dimmable |
| Dimming Type |
Smart-Starfish App through Wifi Module only |
| Dimming Note |
Only dimmable via WiFi Module 80-954 (available for purchase) and via the Starfish App |
| Power Factor |
0.9 |
| Hours Rated |
50000 |
| Operating Position |
Universal |
| Surge Protection |
Built-in surge protection - 4KV |
| THD |
5.90% |
| Operating Temperature |
-30C (-22F) to +45C (+113F) |
Physical
| MOL |
8.35 |
| MOD |
3.35 |
| Shape |
Corncob |
| Base |
Mogul Extended |
| ANSI Base |
EX39 |
| Finish |
White |
| Lens Finish |
Clear |
| Lens Material |
Plastic |
| Housing Color |
Dark Gray |
| Photocell or Sensor |
Optional |
| Weight (lb.) |
1.41 |
Additional Information
| Rated For Enclosed Fixture |
Yes |
| IP Rating |
IP64 |
| Installation Notes |
Not for use in vapor tight fixtures. |
| Warranty |
5-Years |
Compliance
| Safety Listing |
cULus - Certified; cULus - Classified; cRUus - Recognized Component |
| Location Rating |
Damp |
| DLC Approved |
Yes |
| DLC ID |
S-V389PR |
| RoHS Compliant |
Yes |
| FCC Compliant |
Yes |
| SDS Sheet |
LED Lamp |
Packaging
| Each UPC |
045923231698 |
| Each Quantity |
1 |
| Each Length (in.) |
9.80 |
| Each Width (in.) |
3.66 |
| Each Height (in.) |
3.66 |
| Each Weight (lb.) |
1.65 |
| Each Cube (CuFt.) |
0.0760 |
| Pack Type |
Box |
| Inner Quantity |
0 |
| Inner Length (in.) |
0.00 |
| Inner Width (in.) |
0.00 |
| Inner Height (in.) |
0.00 |
| Inner Weight (lb.) |
0.00 |
| Inner Cube (CuFt.) |
0.0000 |
| Case UPC |
10045923231695 |
| Case Quantity |
12 |
| Case Length (in.) |
15.35 |
| Case Width (in.) |
11.57 |
| Case Height (in.) |
10.40 |
| Case Weight (lb.) |
22.06 |
| Case Cube (CuFt.) |
1.0689 |
