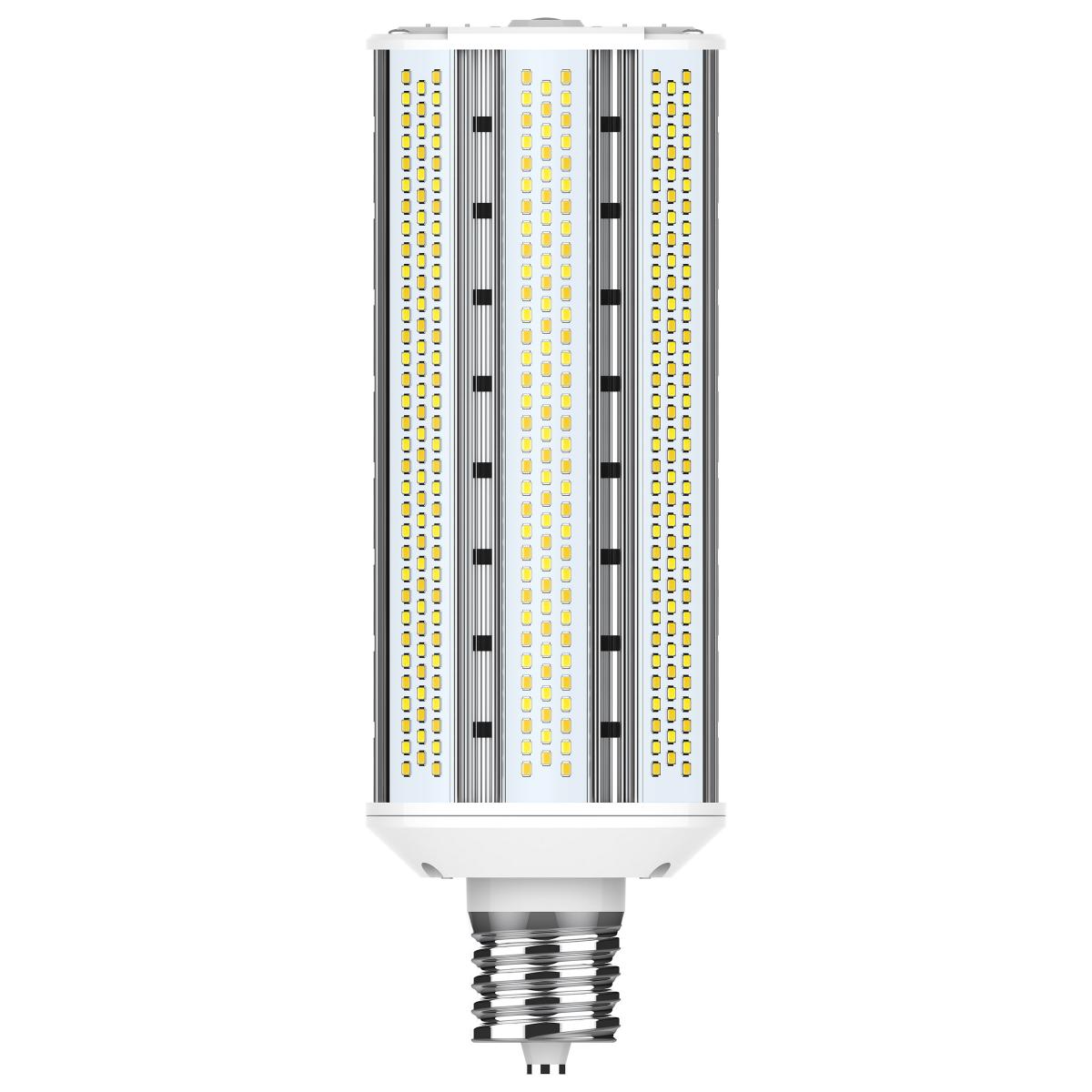

60W/LED/WP/CCT/EX39/100-277V
20/40/60 Wattage Selectable; LED Hi-Pro Wall Pack; CCT Selectable 3K/4K/5K; Type B; Ballast Bypass; Extended Mogul base; 100-277 Volt; ColorQuick Technology; PowerQuick Technology
Specifications
General
| Status |
Active |
| Watts |
20W/40W/60W |
| Incandescent Equivalent |
100W |
| HID Equivalent |
250W |
| Volts |
120V-277V |
| Shape |
Corncob |
| Base |
Mogul Extended |
| ANSI Base |
EX39 |
| Finish |
White |
| CCT (Kelvin) |
3000K/4000K/5000K |
| Temperature |
Warm to Cool White |
| CRI |
80+ |
| Lumens |
3200L/6500L/9000L |
| Beam Spread |
180 |
| Hours Rated |
50000 |
| Product Category |
Corncob |
| Lamp Type |
Corncob |
| Technology |
LED |
| Min Compartment Size |
Length: 8 in. Width: 8 in. Height: 12 in. |
| Ballasting Requirements |
Ballast Bypass |
Electrical
| Watts |
20W/40W/60W |
| Incandescent Equivalent |
100W |
| HID Equivalent |
250W |
| Volts |
120V-277V |
| Ballasting Requirements |
Ballast Bypass |
| Operating Frequency |
50/60Hz |
| CCT (Kelvin) |
3000K/4000K/5000K |
| Temperature |
Warm to Cool White |
| CRI |
80+ |
| Lumens |
3200L/6500L/9000L |
| Beam Spread |
180 |
| Power Factor |
>0.9 |
| Hours Rated |
50000 |
| Operating Position |
Horizontal |
| Surge Protection |
Built-in surge protection - 4KV |
| Operating Temperature |
-30C (-22F) to +45C (+113F) |
Physical
| MOL |
10.6 |
| MOD |
3.62 |
| Shape |
Corncob |
| Base |
Mogul Extended |
| ANSI Base |
EX39 |
| Finish |
White |
| Lens Material |
Plastic |
| Housing Color |
White |
| Weight (lb.) |
2.24 |
Additional Information
| Min Compartment Size |
Length: 8 in. Width: 8 in. Height: 12 in. |
| Rated For Enclosed Fixture |
Yes |
| IP Rating |
IP64 |
| Installation Notes |
Not for use in vapor tight fixtures. |
| Warranty |
5-Years |
Compliance
| Safety Listing |
cULus - Certified; cULus - Classified; cULus - Listed |
| Location Rating |
Damp |
| DLC Approved |
Yes |
| DLC ID |
PWQMWM48 |
| RoHS Compliant |
Yes |
| FCC Compliant |
Yes |
| SDS Sheet |
LED Lamp |
Packaging
| Each UPC |
045923289873 |
| Each Quantity |
1 |
| Each Length (in.) |
4.00 |
| Each Width (in.) |
4.00 |
| Each Height (in.) |
11.88 |
| Each Weight (lb.) |
2.55 |
| Each Cube (CuFt.) |
0.1100 |
| Pack Type |
Box |
| Inner UPC |
20045923289877 |
| Inner Quantity |
6 |
| Inner Length (in.) |
12.67 |
| Inner Width (in.) |
8.42 |
| Inner Height (in.) |
12.59 |
| Inner Weight (lb.) |
15.45 |
| Inner Cube (CuFt.) |
0.7773 |
| Case UPC |
10045923289870 |
| Case Quantity |
12 |
| Case Length (in.) |
17.64 |
| Case Width (in.) |
13.31 |
| Case Height (in.) |
13.39 |
| Case Weight (lb.) |
32.74 |
| Case Cube (CuFt.) |
1.8193 |
