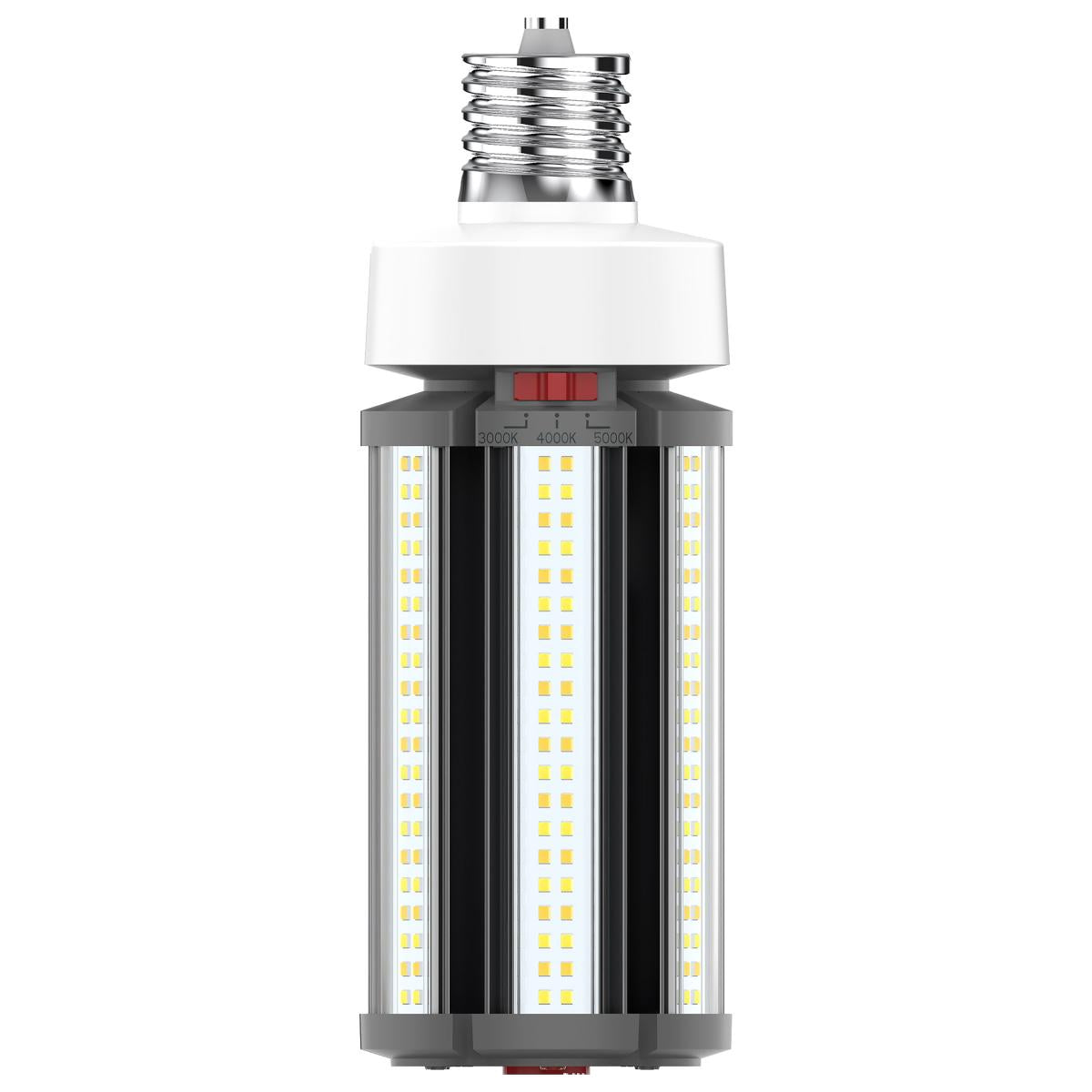

63W/LED/CCT/100-277V/EX39
63/54/45 Wattage Selectable; LED HID Replacement; CCT Selectable; Type B; Ballast Bypass; Extended Mogul base; 100-277 Volt; ColorQuick Technology; PowerQuick Technology
Specifications
General
| Status |
Active |
| Watts |
63W/54W/45W |
| Incandescent Equivalent |
150W-250W |
| HID Equivalent |
250W/200W/175W |
| Volts |
120V-277V |
| Shape |
Corncob |
| Base |
Mogul Extended |
| ANSI Base |
EX39 |
| Finish |
White |
| CCT (Kelvin) |
3000K/4000K/5000K |
| Temperature |
Warm to Cool White |
| CRI |
80+ |
| Lumens |
8820L/7560L/6300L |
| Beam Spread |
300 |
| Hours Rated |
50000 |
| Product Category |
Corncob |
| Lamp Type |
Corncob |
| Technology |
LED |
| Min Compartment Size |
Length: 7.88 in. Width: 7.88 in. |
| Ballasting Requirements |
Ballast Bypass |
Electrical
| Watts |
63W/54W/45W |
| Incandescent Equivalent |
150W-250W |
| HID Equivalent |
250W/200W/175W |
| Volts |
120V-277V |
| Ballasting Requirements |
Ballast Bypass |
| Operating Frequency |
50/60Hz |
| CCT (Kelvin) |
3000K/4000K/5000K |
| Temperature |
Warm to Cool White |
| CRI |
80+ |
| Lumens |
8820L/7560L/6300L |
| Beam Spread |
300 |
| Power Factor |
>0.9 |
| Hours Rated |
50000 |
| Operating Position |
Universal |
| Surge Protection |
Built-in surge protection - 4KV |
| THD |
14.10% |
| Operating Temperature |
-40C (-40F) to +60C (+140F) |
Physical
| MOL |
10.28 |
| MOD |
3.35 |
| Shape |
Corncob |
| Base |
Mogul Extended |
| ANSI Base |
EX39 |
| Finish |
White |
| Lens Material |
Plastic |
| Housing Color |
Dark Gray |
| Weight (lb.) |
1.8 |
Additional Information
| Additional Info |
Safety cable provided with S23143, S23144, S23145 ONLY and is required upon installation of these high bay, base-up applications. (Please See Instructions) |
| Min Compartment Size |
Length: 7.88 in. Width: 7.88 in. |
| Rated For Enclosed Fixture |
Yes |
| Installation Notes |
Not for use in vapor tight fixtures. |
| Warranty |
5-Years |
Compliance
| Safety Listing |
cULus - Certified; cULus - Classified; cULus - Listed |
| Location Rating |
Damp |
| DLC Approved |
Yes |
| DLC ID |
S-ZHMICR |
| RoHS Compliant |
Yes |
| FCC Compliant |
Yes |
| SDS Sheet |
LED Lamp |
Packaging
| Each UPC |
045923231506 |
| Each Quantity |
1 |
| Each Length (in.) |
11.57 |
| Each Width (in.) |
3.66 |
| Each Height (in.) |
3.66 |
| Each Weight (lb.) |
2.18 |
| Each Cube (CuFt.) |
0.0897 |
| Pack Type |
Box |
| Inner UPC |
20045923231500 |
| Inner Quantity |
6 |
| Inner Length (in.) |
11.54 |
| Inner Width (in.) |
7.95 |
| Inner Height (in.) |
12.17 |
| Inner Weight (lb.) |
13.95 |
| Inner Cube (CuFt.) |
0.6461 |
| Case UPC |
10045923231503 |
| Case Quantity |
12 |
| Case Length (in.) |
16.73 |
| Case Width (in.) |
12.28 |
| Case Height (in.) |
13.15 |
| Case Weight (lb.) |
29.33 |
| Case Cube (CuFt.) |
1.5634 |
