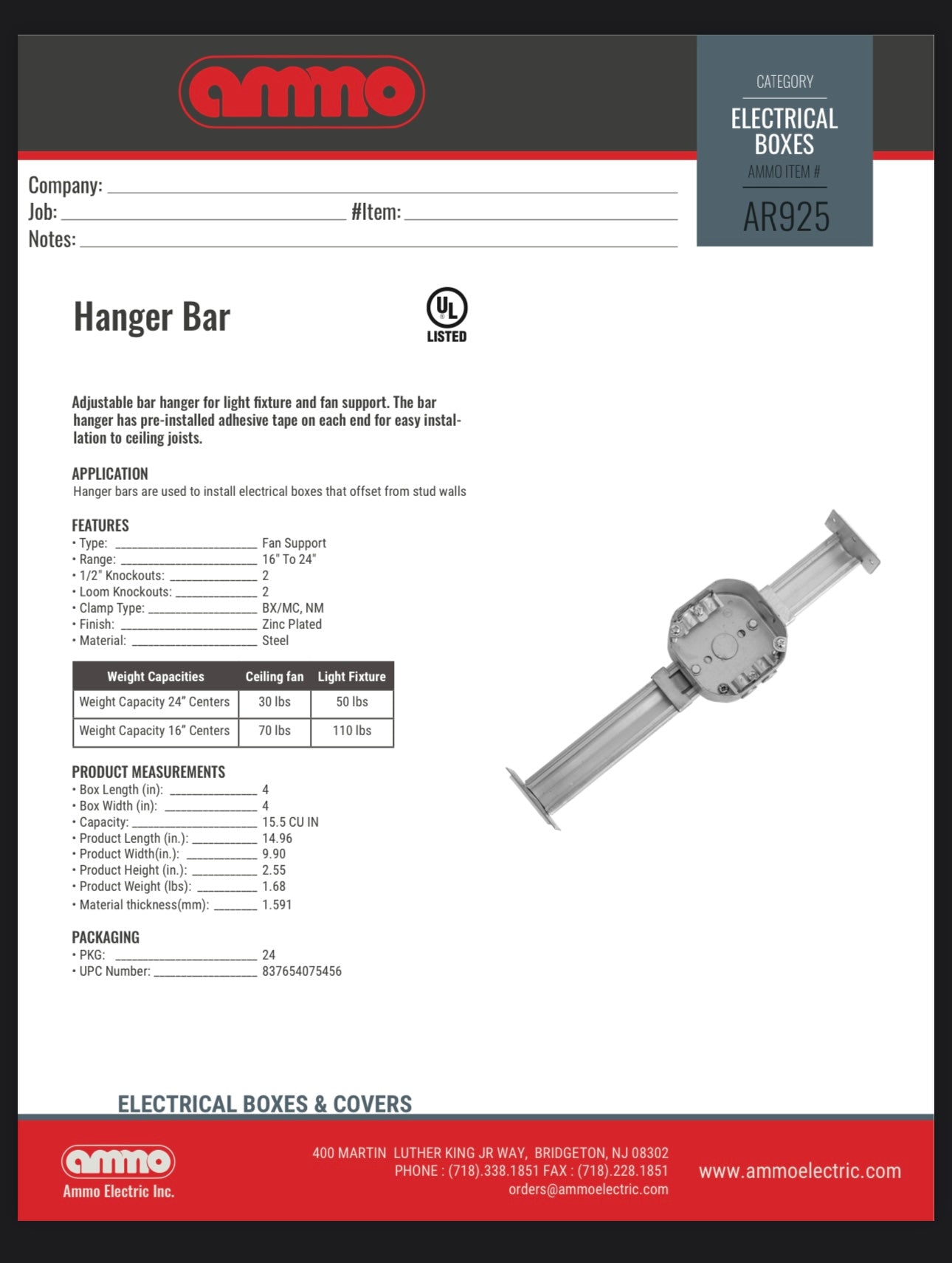

AMMO AR925 – NEW CONST. FAN SUPPORT BOX 1-1/2″ DEEP 24 PACK

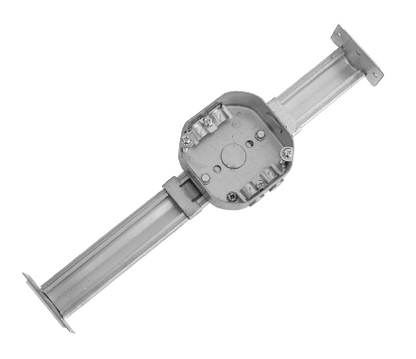

Adjustable bar hanger for light fixture and fan support. The bar hanger has pre-installed adhesive tape on each end for easy installation to ceiling joists.
APPLICATION
Hanger bars are used to install electrical boxes that offset from stud walls
Features:
- Type: Fan Support
- Range: 16" To 24"
- 1/2” Knockouts: 2
- Loom Knockouts: 2
- Clamp Type: BX/MC, NM
- Finish: Zinc Plated
- Material: Steel
Weight Capacities:
|
Ceiling fan |
Light Fixture |
| Weight Capacity 24” Centers |
30 lbs |
50 lbs |
| Weight Capacity 16” Centers |
70 lbs |
110 lbs |
Product Measurements
- Box Length (in): 4
- Box Width (in): 4.5
- Capacity: 15 CU IN
- Product Length (in): 14.96
- Product Width(in): 9.90
- Product Height (in): 2.55
- Product Weight (lbs): 1.68
- Material thickness(mm): 1.591
Packaging
- PKG: 24
- UPC Number: 837654075456
