JFR ASD-JFRB-MV-6D15BK

JFR ASD-JFRB-MV-6D15BK

• 2-Hour Fire Resistance
• Heavy duty commercial grade spring clips with increased height
• CRI90+ Rich and natural colors
• 5 color temperature options

Description

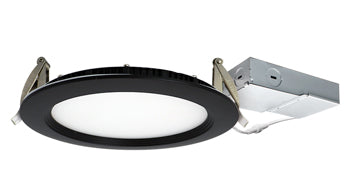

DESIGN. FIRE RATED LED ROUND RECESSED MINI PANEL features a reinforced, heat-resistant steel body with a 2-hour fire resistance rating. It includes a J-box, plug-and-twist connector, and spring-loaded clips for quick, hassle-free installation. Heavy-duty, commercial-grade spring clips accommodate ceilings up to 1-3/4" thick. An acrylic lens with a 110° beam angle and CRI90+ ensures even, high-quality light with smooth dimming capabilities.

VARIETY. This fixture is available in a round shape with 4" and 6" sizes, offering 120V or 120-277V options. It features a baffle trim and comes in a White or Black finish.

COLOR SELECTABLE. You can choose either a 2700K soft white, 3000K warm white, 3500K neutral white, 4000K cool white, or 5000K daylight color temperature.

INSTALLATION. This Air Tight, IC-rated fixture requires no can or additional housing. When installed in ceilings compliant with fire-rated building codes, no extra accessories are needed. It is also Wet Location rated, making it versatile for various applications.

ADVANTAGES: With a lifespan of 50,000 hours, these fixtures are made to last decades under normal operation! ASD provides a 5-year limited warranty along with ETL certification to guarantee top quality products and safety! Additionally, our fire rated fixtures are tested to comply with UL 263, ASTM E119, and CAN ULC S101.

Specification

• Finish: Black
• Voltage: 120-277
• Power: 15
• Luminous Flux: 1098 / 1130 / 1191 / 1197 / 1148
• Dimming: Y
• Color Temperature: 2700 / 3000 / 3500 / 4000 / 5000

• Available Power: 4- 6 inch
• Color Temperature: 12-15W
