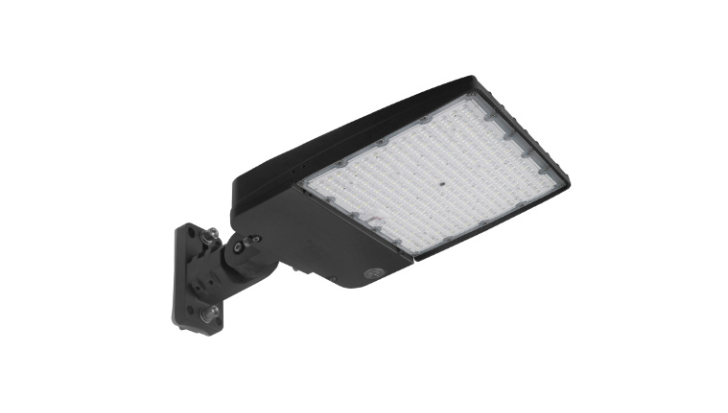

LED AREA LIGHT WITH PHOTOCELL ASD-LSB5-200D50BR-AMR

LED AREA LIGHT WITH PHOTOCELL ASD-LSB5-200D50BR-AMR

• Die-cast aluminum housing with excellent heat dissipation
• 10kV surge protection against voltage and current surges
• 3G vibration rating that conforms to standards for roadway
• Shoebox, wallpack, floodlight or streetlight brackets

• Available Power 100-300W
• Color temperature 5000K

DESIGN. LED AREA LIGHT WITH PHOTOCELL has die-cast aluminum housing with excellent heat dissipation and anti-glare PC type III-M lens with even light distribution. With 10kV surge protection, it is designed to operate on 120-277V circuits with a 0-10V dimmable driver. The photocell can be disabled with built-in switch.

VARIETY. The fixture is available without any mounting bracket or with preinstalled Adjustable Arm Mounting Bracket or Slip fitter Bracket.

PHOTOCELL. The built-in Dusk to Dawn Photocell will automatically activate/deactivate the fixture depending on the time of day. The photocell can be disabled with an on-off switch.

INSTALLATION. This fixture is Wet Locations rated and can be pole, post, or wall mounted using the slip fitter bracket, arm bracket, floodlight, full trunnion, tenon, and wall mounting bracket. It comes with a 4 ft cord. Perfect commercial or industrial solution for roadway lighting, highway lighting, sport lighting, parks, parking lots, backyards, and many other applications.

ADVANTAGES: With calculated lifespan up to 163 000 hours, these fixtures are made to last decades under normal operation! ASD provides a 5-year limited warranty along with UL and DLC Premium certifications to guarantee top quality products and safety!

• UPC 81012811327
• Certification UL / DLC
• Finish Bronze
• Material Aluminum
• Voltage 120-277
• Power 200
• Luminous Flux 30071
• Dimming Y
• Color Temperature 5000
• Location Wet
• IP IP66
• Warranty 5
• Dimensions DxH 11 x 22 1/4 x 6 1/4
