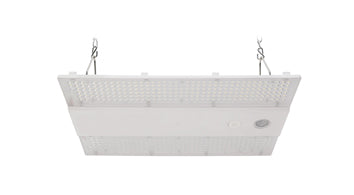

ASD LED Linear High Bay with Q-base 100/130/160W 120-277V 0-10V Dimmable 5000K IK10 White UL DLC Premium
- Built-in motion sensor base
- Die-cast aluminum housing with excellent heat dissipation
- 10ft cord with plug
- Power Adjustable
- IK10 impact protection
-
Available Power 100-500W
-
Color temperature 5000K
DESIGN. LED LINEAR HIGH BAY WITH Q-BASE has a built-in motion sensor base, allowing you to install the microwave or PIR motion sensor. Die-cast aluminum housing with excellent heat dissipation along with an anti-glare PC lens provide many years of use. It is designed to operate on 120-277V circuits with a 0-10V dimmable driver. Surge protection 6kV protects the fixture from voltage spikes and current surges.
POWER ADJUSTABLE: You can easily change the power with a simple switch according to your needs.
INSTALLATION. This fixture has three different mounting options: suspended, surface, and pendant.
APPLICATION. Perfect commercial or industrial solution for warehouses, supermarkets, retail stores, gyms, and many other applications. This fixture has IK10 level impact protection and is also Damp Locations rated.
ADVANTAGES: With calculated lifespan up to 167 000 hours, these fixtures are made to last decades under normal operation! ASD provides a 5-year limited warranty along with UL and DLC Premium certifications to guarantee top quality products and safety!
-
UPC 81012811651
-
Certification UL / DLC
-
Finish White
-
Material Aluminum, PC
-
Voltage 120-277
-
Power 100 / 130 / 160
- Luminous Flux 16882 / 20567 / 24842
-
Dimming Y
- Color Temperature 5000
- Location Damp
-
Warranty 5
-
Dimensions DxH 9 13/16 x 14 15/16 x 2 15/16
