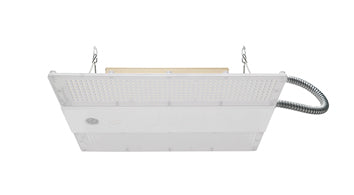

ASD LED Linear High Bay with Q-base 130/160/220W 120-277V 0-10V Dimmable 170lm/W 3500/4000/5000K IK10 with 40W Battery back-up UL DLC Premium

ASD LED Linear High Bay with Q-base 130/160/220W 120-277V 0-10V Dimmable 170lm/W 3500/4000/5000K IK10 with 40W Battery back-up UL DLC Premium

• Extreme efficiency 170lm/W
• Built-in motion sensor base
• Color and Power Selectable
• IK10 impact protection

• Available Power 100-500W
• Color temperature 3CCT

DESIGN. LED LINEAR HIGH BAY WITH Q-BASE is extremely efficient with a 170lm/W output. It has a built-in motion sensor base, allowing you to install the microwave motion or PIR sensor. Die-cast aluminum housing with excellent heat dissipation along with an anti-glare PC lens provide many years of use. Surge protection 6kV protects the fixture from voltage spikes and current surges.

VARIETY. Fixture is designed to operate on 120-277V or 277-480V circuits.

COLOR AND POWER SELECTABLE. You can choose either a 3500K neutral white, 4000K cool white or 5000K daylight color temperature, and change the power with a simple switch.

INSTALLATION. This fixture has three different mounting options: suspended, surface, and pendant.

APPLICATION. Perfect commercial or industrial solution for warehouses, supermarkets, retail stores, gyms, and many other applications. This fixture has IK10 level impact protection and is also Damp Locations rated.

ADVANTAGES: With calculated lifespan up to 167 000 hours, these fixtures are made to last decades under normal operation! ASD provides a 5-year limited warranty along with UL and DLC Premium certifications to guarantee top quality products and safety!

MODELS WITH BATTERY BACK-UP. The built-in battery back-up provide 90 minutes of power in case of emergency.

• UPC 81012811686
• Certification UL / DLC
• Finish White
• Material Aluminum, PC
• Voltage 120-277
• Power 130 / 160 / 220
• Luminous Flux 24320 / 28470 / 36274
• Dimming Y
• Color Temperature 3500/4000/5000
• Location Damp
• Warranty 5
• Dimensions DxH 12 7/16 x 17 11/16 x 5 9/16
