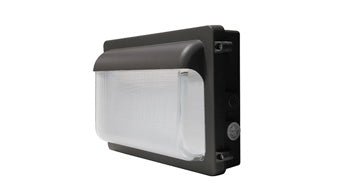

ASD LED Slim Wallpack 60/70/80W 120-277V 0-10V Dimmable 135Lm/W 3000/4000/5000K with Photocell Bronze UL DLC Premium
- Die-cast aluminum slim housing with excellent heat dissipation
- Tempered glass lens for high illuminance
- Removable hinge door for quick and easy wiring
- Surge protection against voltage and current surges
-
Available Power 50-120W
-
Color temperature 3CCT
DESIGN. LED SLIM WALLPACK has a die-cast aluminum housing with excellent heat dissipation, tempered glass lens to protect the LED chips and provide high illuminance, and anti-leakage silicone gaskets. It is designed to operate on 120-277V circuits with a 0-10V dimmable driver.
Slim housing provides a nice design with superior illumination.
Surge protection 6kV protects the fixture from voltage spikes and current surges.
INSTALLATION. The fixture can be mounted to a junction box or directly to a wall. Perfect commercial or industrial solution for outdoor security lighting, wall perimeter lighting, garages, large backyards, warehouses, hotels, and many other applications. It is also Wet Locations rated.
ADVANTAGES: With calculated lifespan up to 145 000 hours, these fixtures are made to last decades under normal operation! ASD provides a 5-year limited warranty along with UL and DLC Premium certifications to guarantee top quality products and safety!
-
UPC 81012811856
-
Certification UL / DLC
-
Finish Bronze
-
Material Aluminum, Glass
-
Voltage 120-277
-
Power 60 / 70 / 80
- Luminous Flux 7794 / 9035 / 10239
-
Dimming Y
- Color Temperature 3000/4000/5000
- Location Wet
-
IP IP65
-
Warranty 5
-
Dimensions DxH 9 3/16 x 14 x 4 5/16
