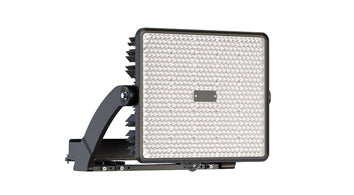

ASD LED Sport Light 1800W 200-480V 0-10V Dimmable 140Lm/W 5000K DMX DALI 17° CRI80 Black UL DLC
- Die-cast aluminum housing with excellent heat dissipation
- DMX,DALI-2 and 0-10V custom controls
- Surge protection against voltage and current surges
- 3G vibration rating that conforms to standards for roadway
-
Available Power 1600W, 1800W
-
Color temperature 5000K
DESIGN. LED SPORT LIGHT has distinct, angular design that enables precise, focused light projection, making them ideal for controlled lighting scenarios - ideal for focused, high -intensity illumination. Its die-cast aluminum housing with numerous vents on the heat sink has excellent heat dissipation for extremely high power up to 1800W. CRI80+ rating provides rich and natural colors. It is designed to operate on 200-480V circuits.
CUSTOM CONTROLS. Fixtures are controllable with wired DMX, DALI-2 or 0-10V dimmable driver to suit your needs for Individual light control for dynamic & static scenes. DMX and DALI-2 protocols allow information to be transferred between multiple devices, such as lighting commands, fault details and diagnostics.
SURGE PROTECTION 10kV protects the fixture from voltage spikes and current surges.
INSTALLATION. This fixture has IK10 impact protection, 3G vibration rating and rated for Wet locations. Fixture can be installed at a height of up to 165 Ft. Perfect for commercial or industrial solution for any outdoor sports lighting, dock lighting, high mast flood lighting, stadium lighting, and many other applications.
ADVANTAGES: With calculated greater than 90% lumen maintenance at 102000 Hrs. lifespan, these fixtures are made to last decades under normal operation! ASD provides a 7-year limited warranty along with UL and DLC Premium certifications to guarantee top quality products and safety!
-
UPC 81012811934
-
Certification UL / DLC
-
Finish Black
-
Material Aluminum
-
Voltage 200-480
-
Power 1800
- Luminous Flux 245543
-
Dimming Y
- Color Temperature 5000
- Location Wet
- IP IP69K
-
Warranty 7
-
Dimensions DxH 20 3/8 x 17 11/16 x 5 3/16
