ASD LED Edge-Lit Canopy with Q-base 50/70/80W 120-277V 0-10V Dimmable 140Lm/W 3000/4000/5000K White UL DLC Premium

ASD LED Edge-Lit Canopy with Q-base 50/70/80W 120-277V 0-10V Dimmable 140Lm/W 3000/4000/5000K White UL DLC Premium

• Built-in motion sensor base
• Die-cast aluminum housing with excellent heat dissipation
• Color and Power selectable
• Wet Locations rated
• Built-in back-up battery

• Available Power: 40-100W
• Color temperature: 3CCT

DESIGN. LED SQUARE EDGE-LIT CANOPY WITH Q-BASE has a built-in motion sensor base, allowing you to install the microwave PIR motion sensor. Die-cast aluminum housing with excellent heat dissipation along with an anti-glare PC lens provide many years of use. It is designed to operate on 120-277V circuits with a 0-10V dimmable driver.

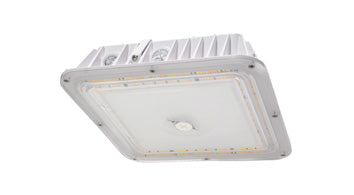

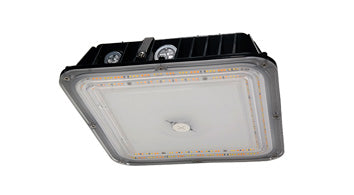

VARIETY. The fixtures are available in White and Black finishes.

COLOR AND POWER SELECTABLE. You can choose either a 3000K warm white, 4000K cool white or 5000K daylight color temperature, and change the power with a simple switch.

Surge protection 6kV protects the fixture from voltage spikes and current surges.

INSTALLATION. The fixture is Wet Locations rated and can be either surface mounted or pole mounted. Perfect commercial or industrial solution for parking garages, gas stations, stairwells, passageways, underpasses, and many other applications.

ADVANTAGES: With calculated lifespan up to 150 000 hours, these fixtures are made to last decades under normal operation! ASD provides a 5-year limited warranty along with UL and DLC Premium certifications to guarantee top quality products and safety!

• UPC 81012811792 | 81012811791
• Certification UL / DLC
• Finish White | Black
• Material Aluminum, PC
• Voltage 120-277
• Power 50 / 70 / 80
• Luminous Flux 7573 / 9945 / 11033
• Dimming Y
• Color Temperature 3000/4000/5000
• Location Wet
• IP IP65
• Warranty 5
• Dimensions DxH 10 x 10 x 3 1/16
