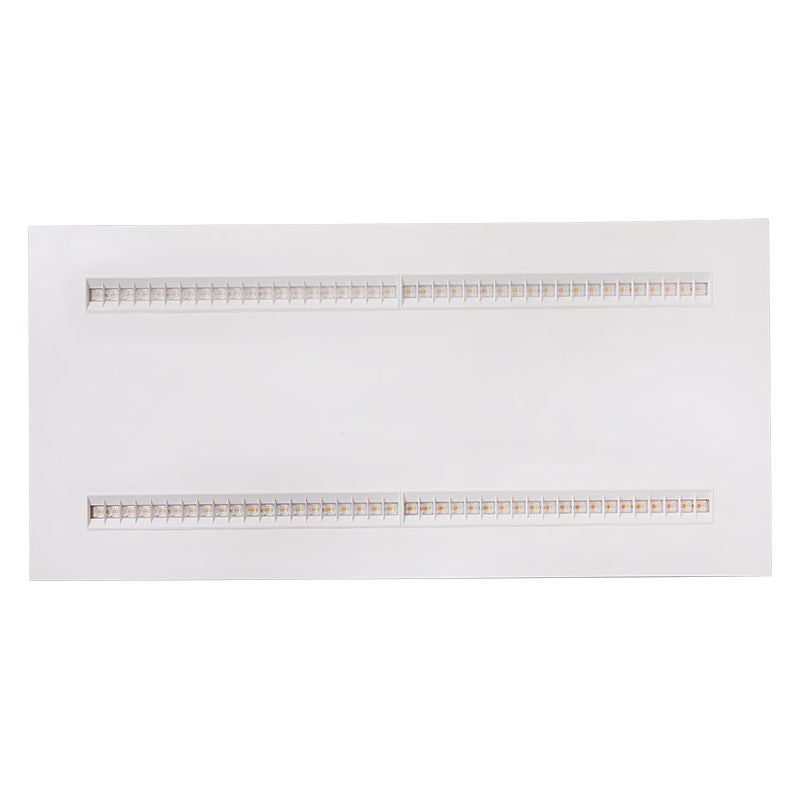

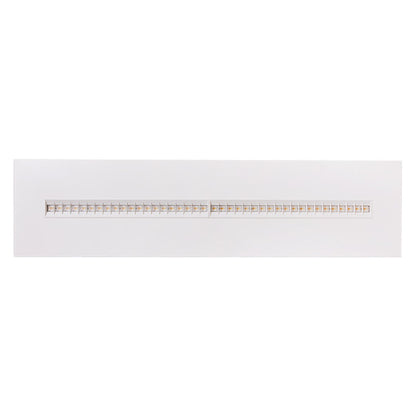

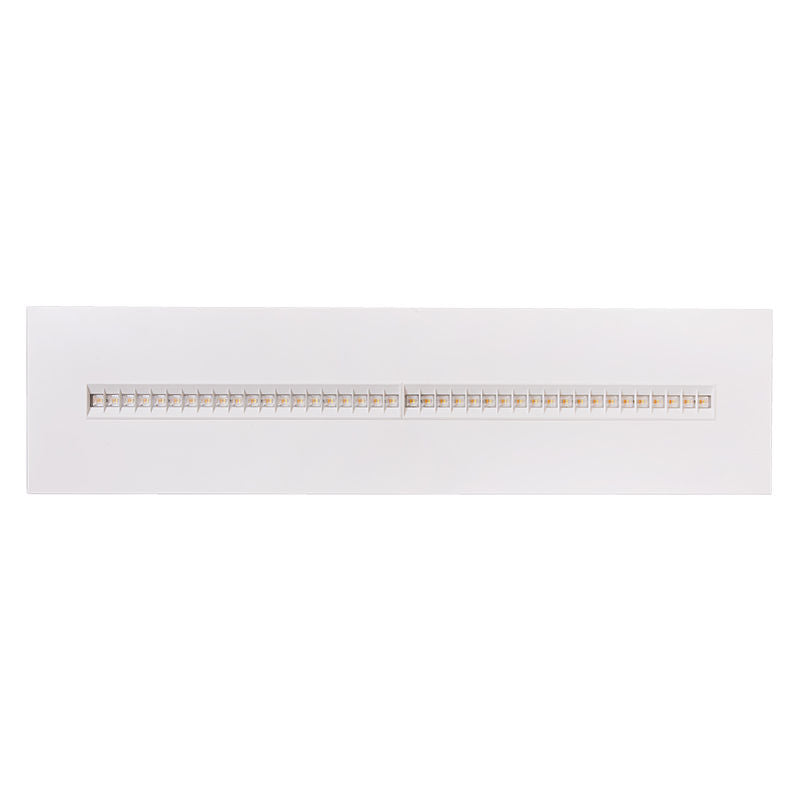

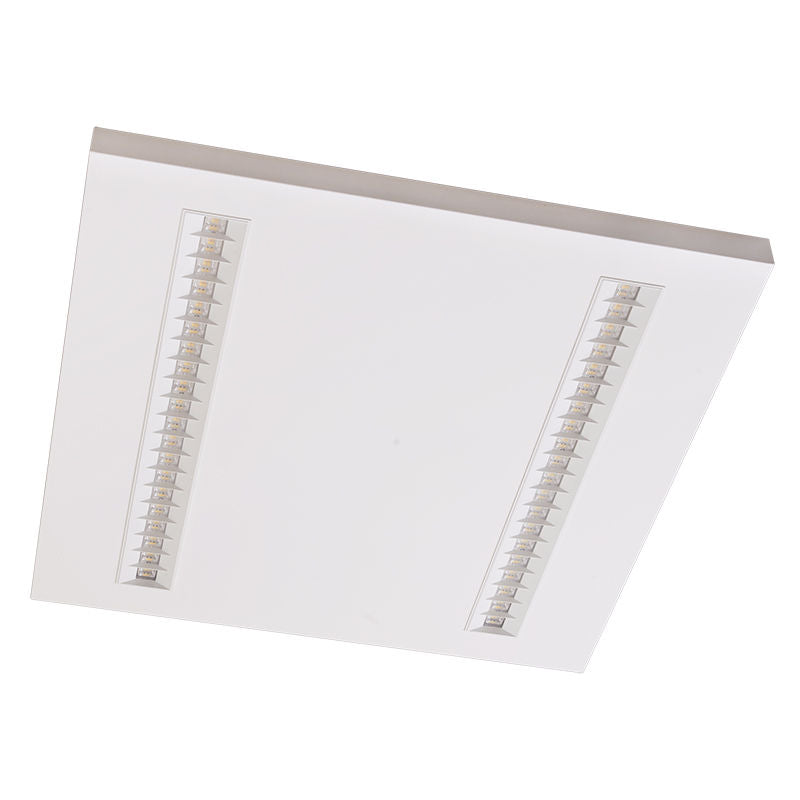

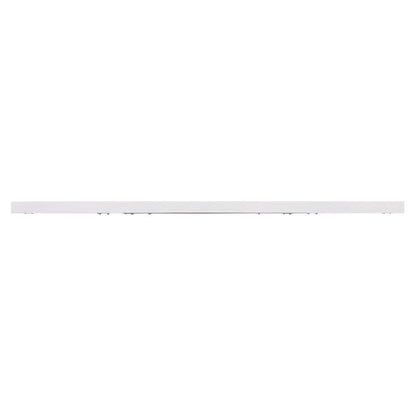

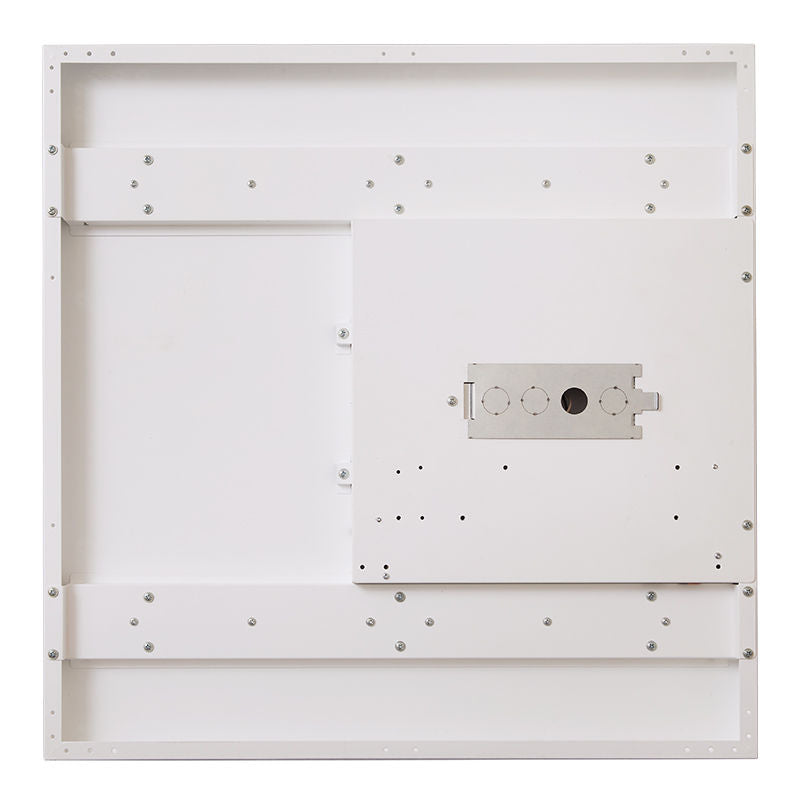

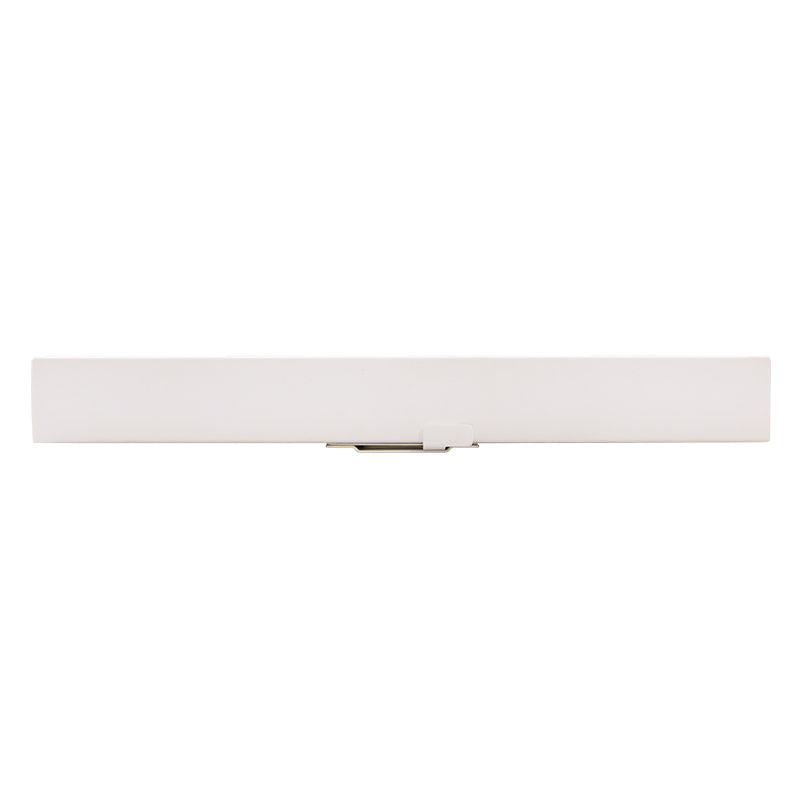

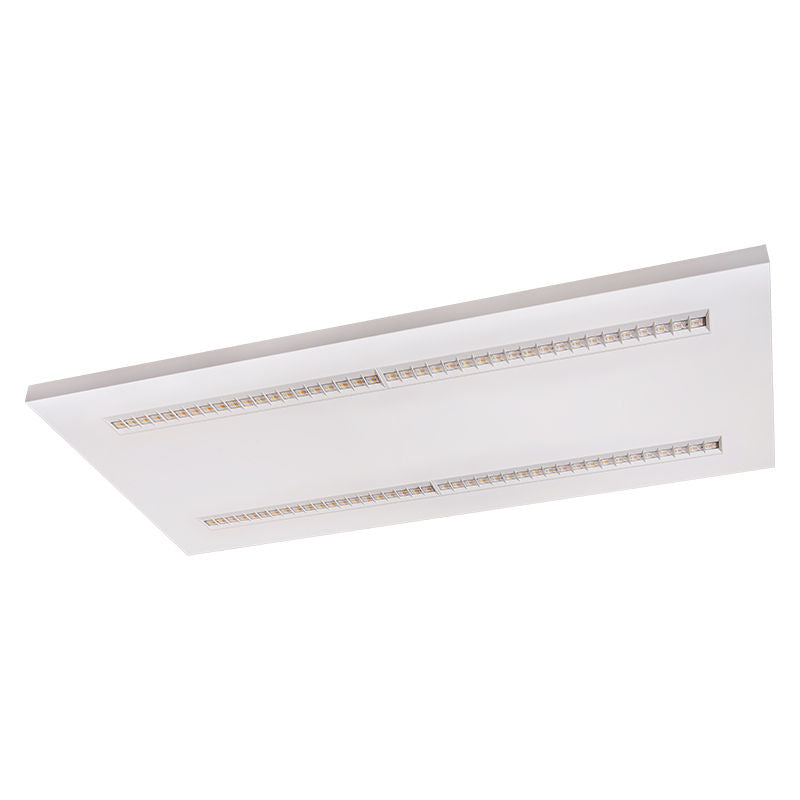

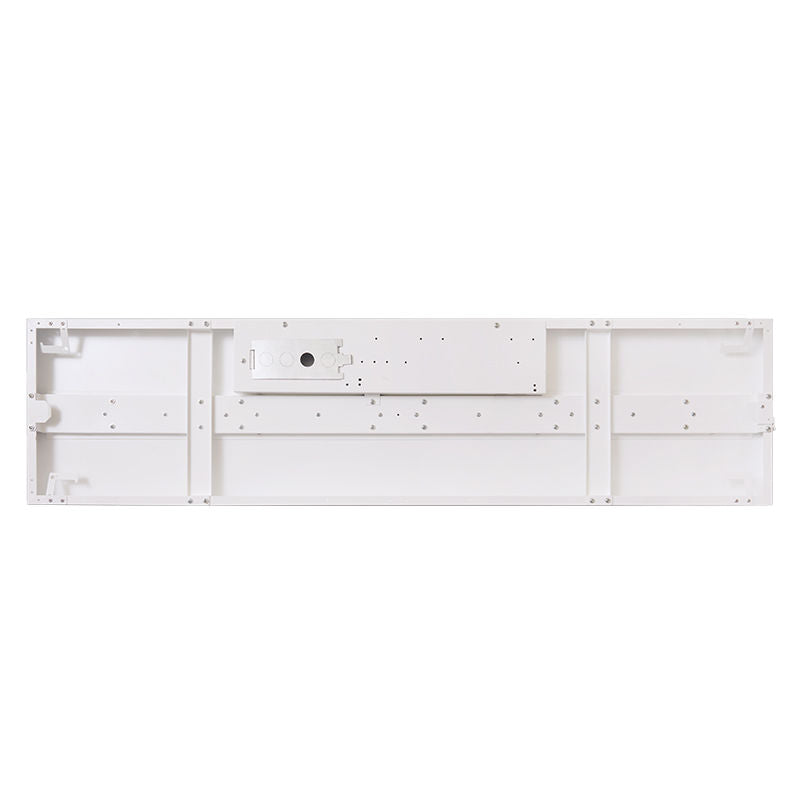

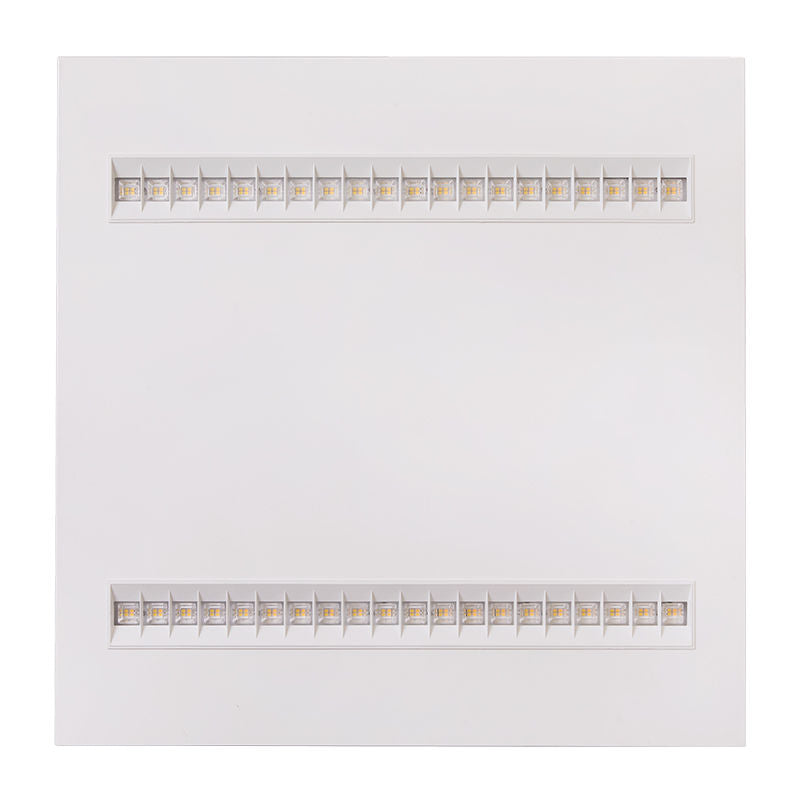

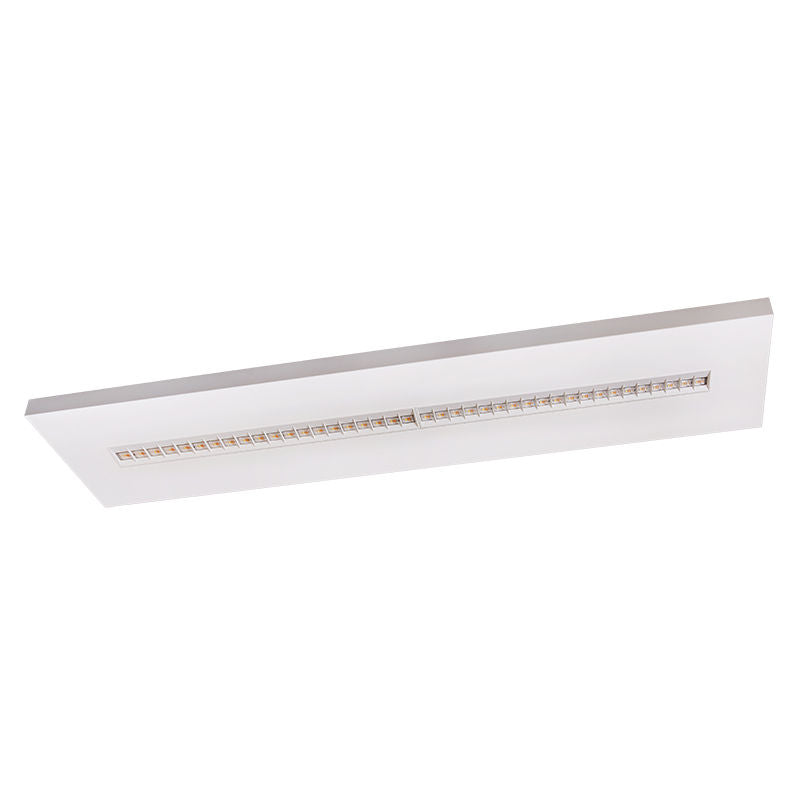

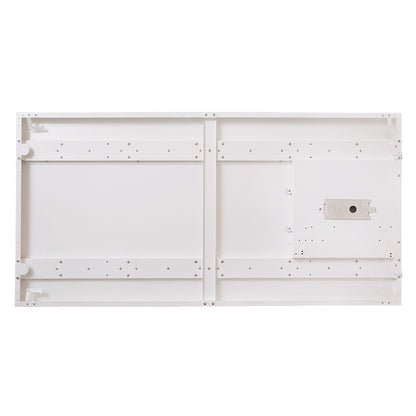

LTRA - Aperture Grille Troffer

LTRA - Aperture Grille Troffer

Technical Specs

• Voltage: 120-277V AC 50/60Hz
• Wattage: 20W/25W/30W/40W/50W/60W
• Power Factor: >0.92
• Efficacy: 125 LPW
• High Quality LED Chips Provide High Efficiency, Heat Dissipation, Stability, And Lumen Maintenance
• Individual, Pure Aluminum Heat Sinks Offers Heat Transmission Faster Than Die Cast Steel
• Driver Disconnect provided Where Required to Comply With US And Canadian Codes
• Performance Engineered Optical Lens Assembly Delivers Unique Beam Angles and Reduces Glare
• Polycarbonate Lens
• Operating Temp: -22°F to 104°F
• IP Rating: IP20 Indoor use only
• 5-Year Warranty
• Dimmable: 0~10V Dimming
• Multi CCT: Selectable Multi-CCT & Power Switches Inside The Driver Box
• Total Lumens: 5000LM-7500LM Max.
• Color Temperatures: 3500K/4000K/5000K
• Color Rendering Index: CRI ? 80
• 50,000 Hours Rated Life

Applications

• Ideal for offices, schools, healthcare, and retail settings, this sleek fixture ensures seamless integration and optimal visual comfort.
