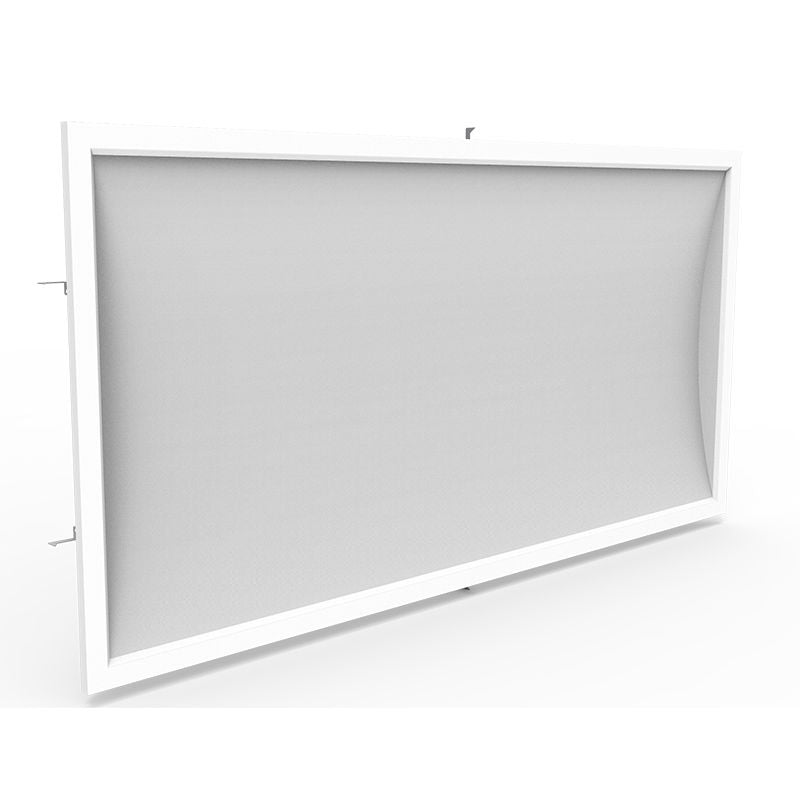

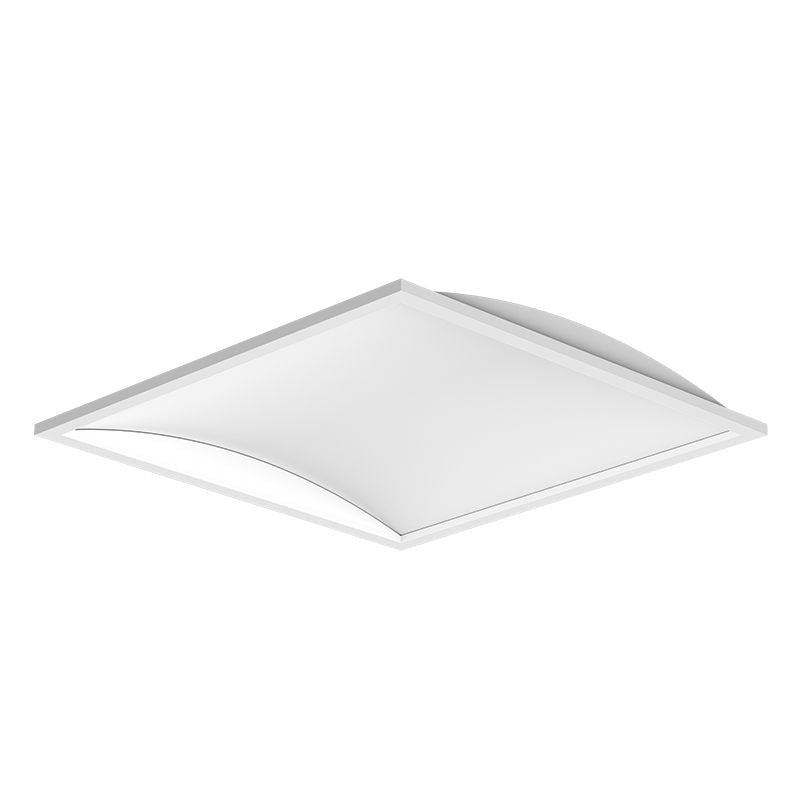

LTRC - Premium Curved Indirect Troffer

LTRC - Premium Curved Indirect Troffer

Technical Specs

• Voltage: AC120V-277V 50/60Hz
• Power Factor: >0.90
• Wattage: 25W/30W/40W/50W
• Fixture Operating Voltage: 36VDC
• Rated Input Current (mA): 420/ 337/ 253mA
• Total Harmonic Distortion: ? 20 %
• Efficacy: 125 LPW
• White Finish
• Earthquake Hooks and Suspension Hooks pre-installed

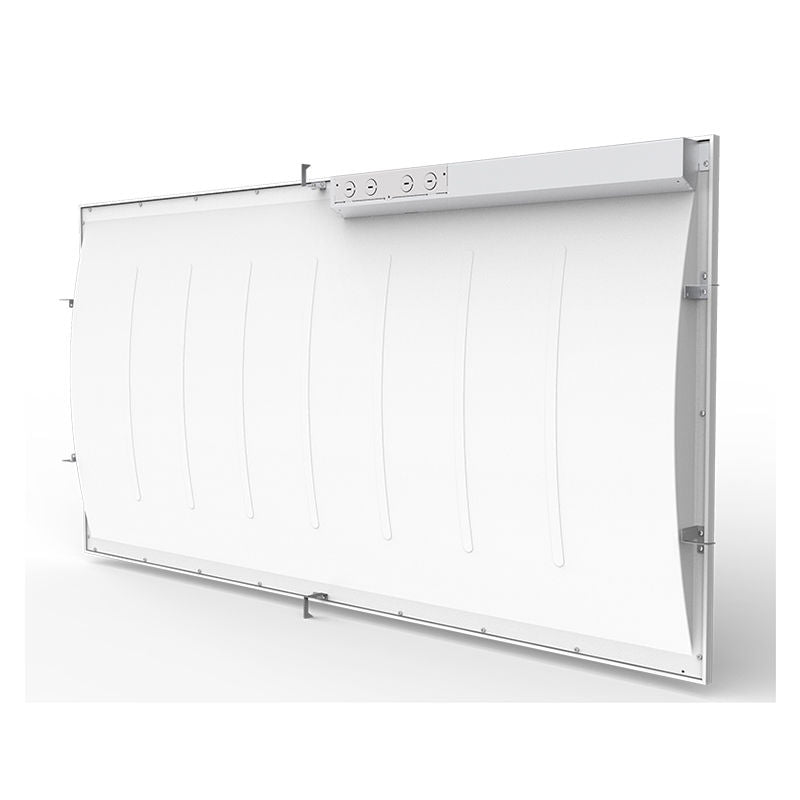

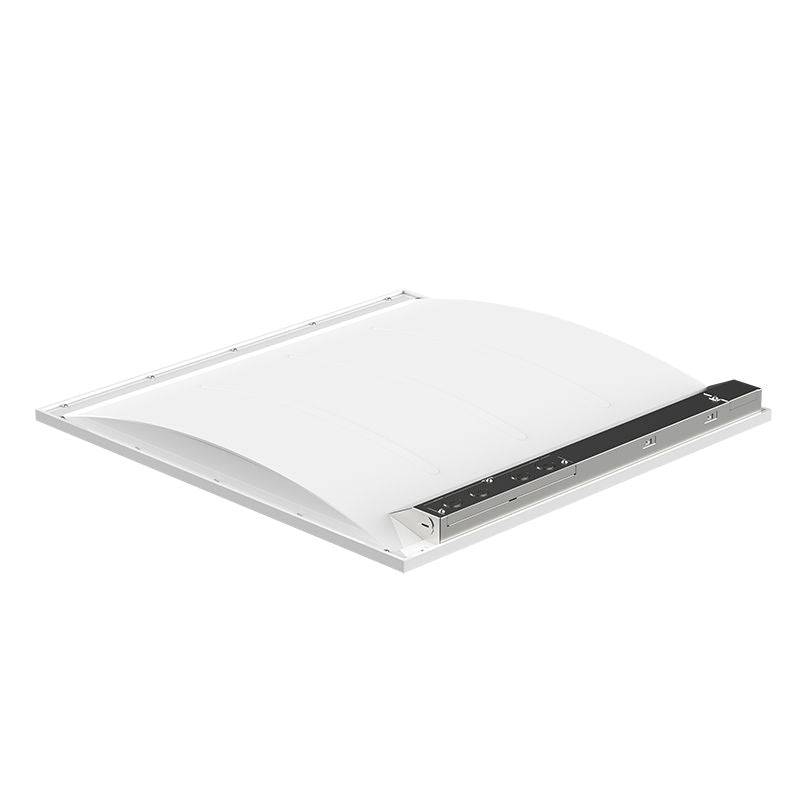

• External driver mounted on top
• Operating Temperature: -68ºF~104ºF
• IP Rating: IP20 (Indoor use only)
• Rated life: 50,000 hrs
• Multi CCT & Multi Power (Selectable Switch On Back of Fixture)
• Dimmable: 0~10V Dimming
• Total Lumens: 5000LM
• Color Temperatures: 3500K/4000K/5000K
• Color Rendering Index: CRI ? 80
• 5-Year Warranty
• Beam Angle: 110°

Applications

• Ideal for hotel, offices, retail outlets, restaurant, parking garages, storage room, conference room, education facilities and more.
