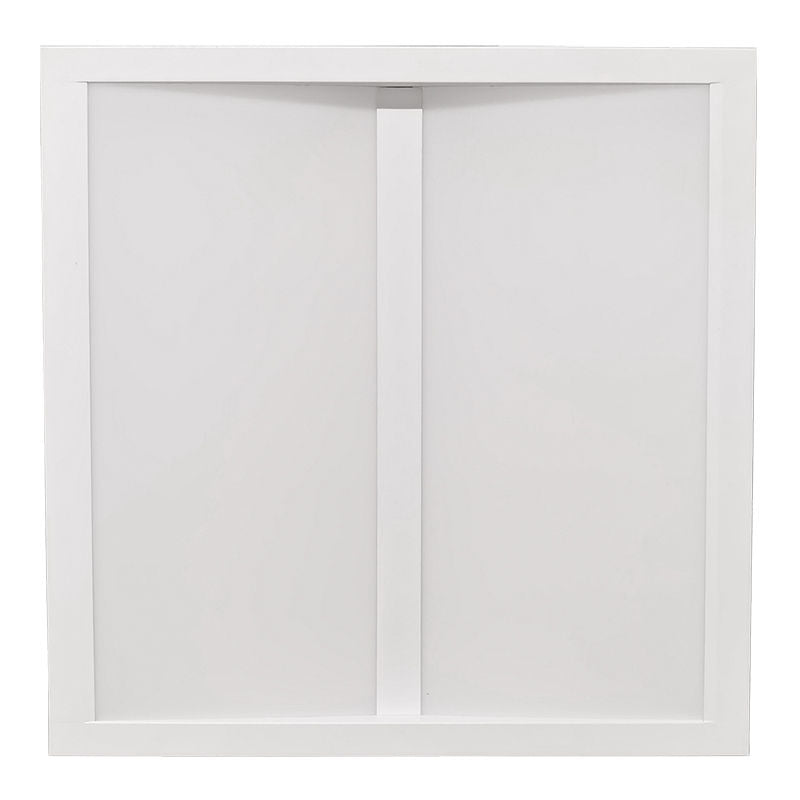

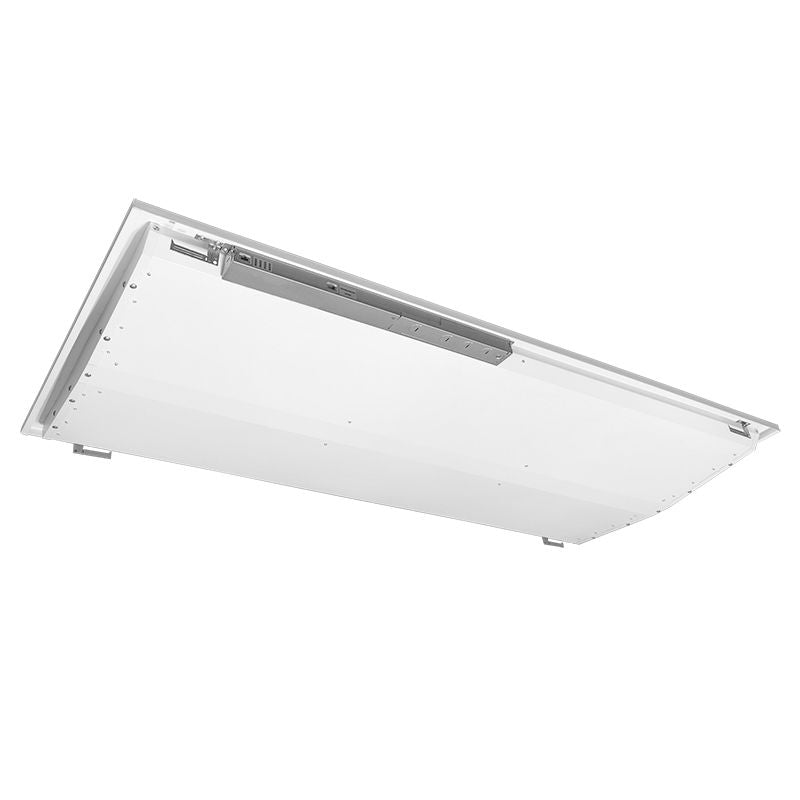

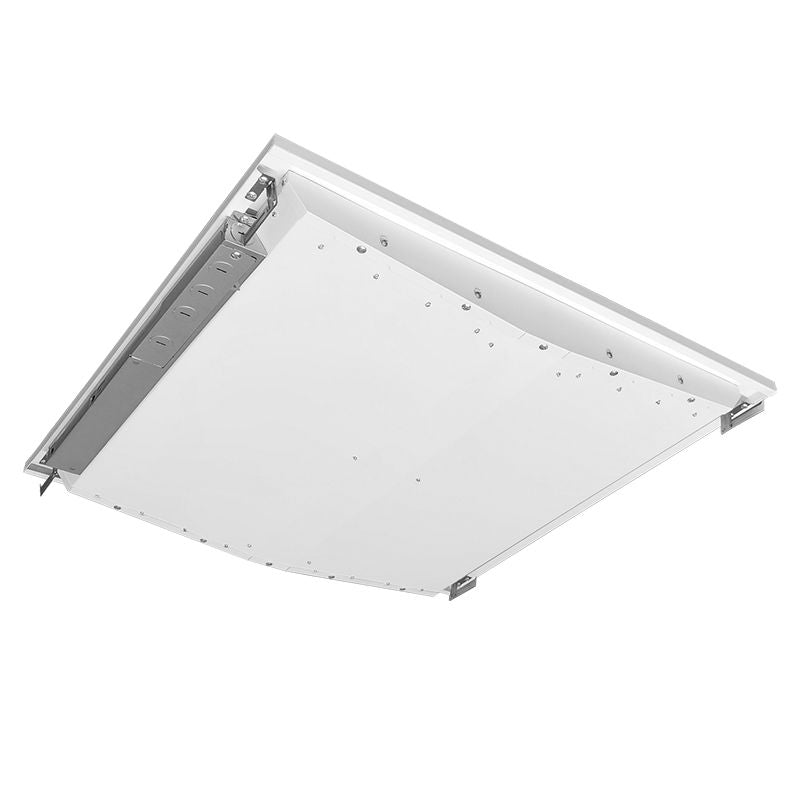

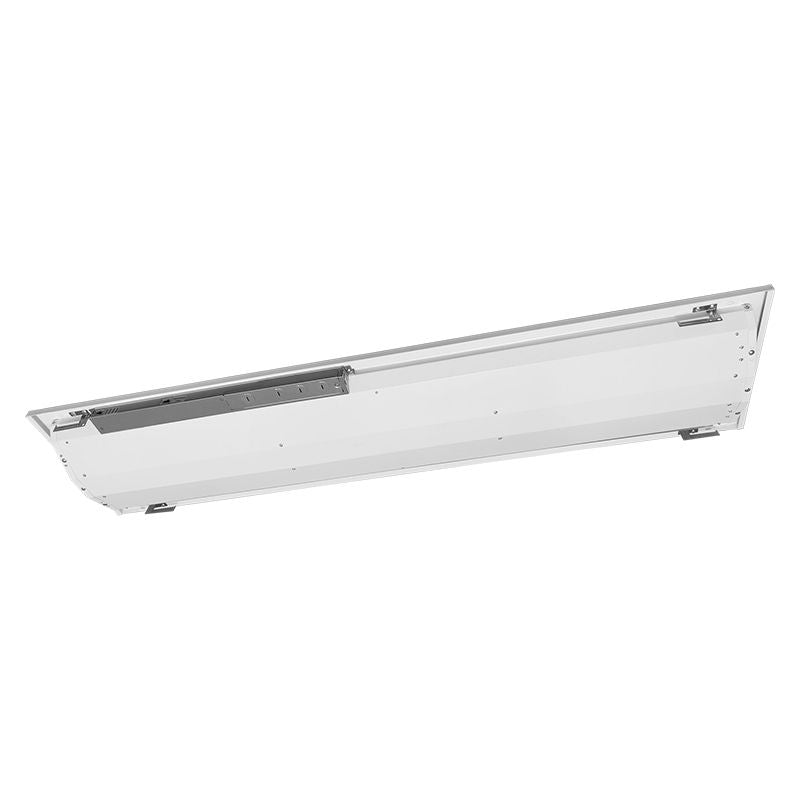

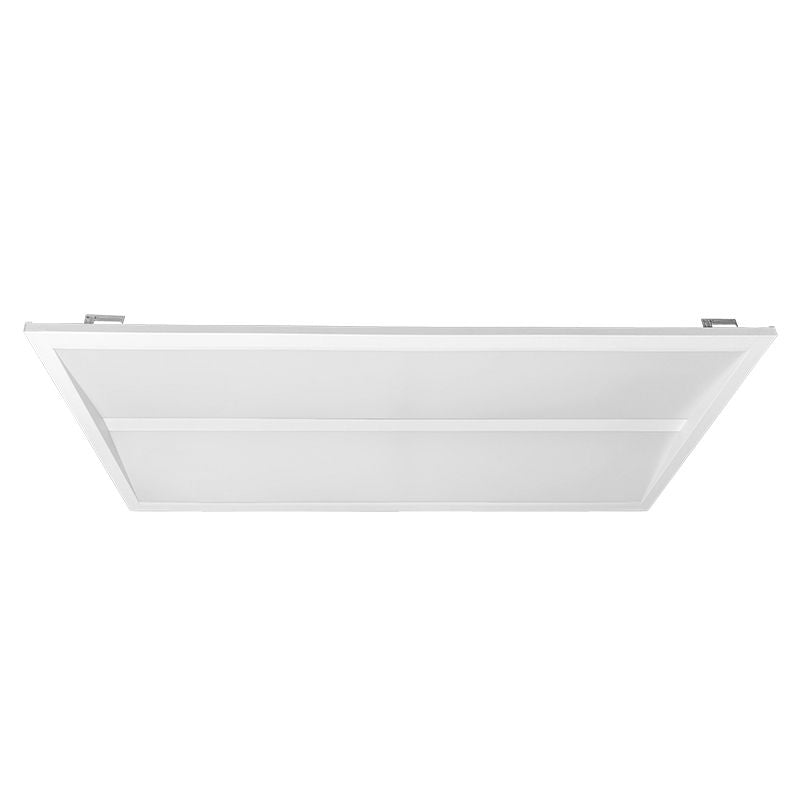

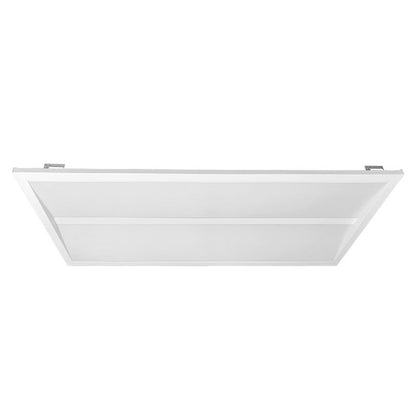

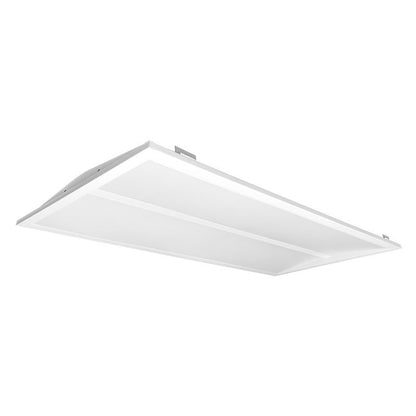

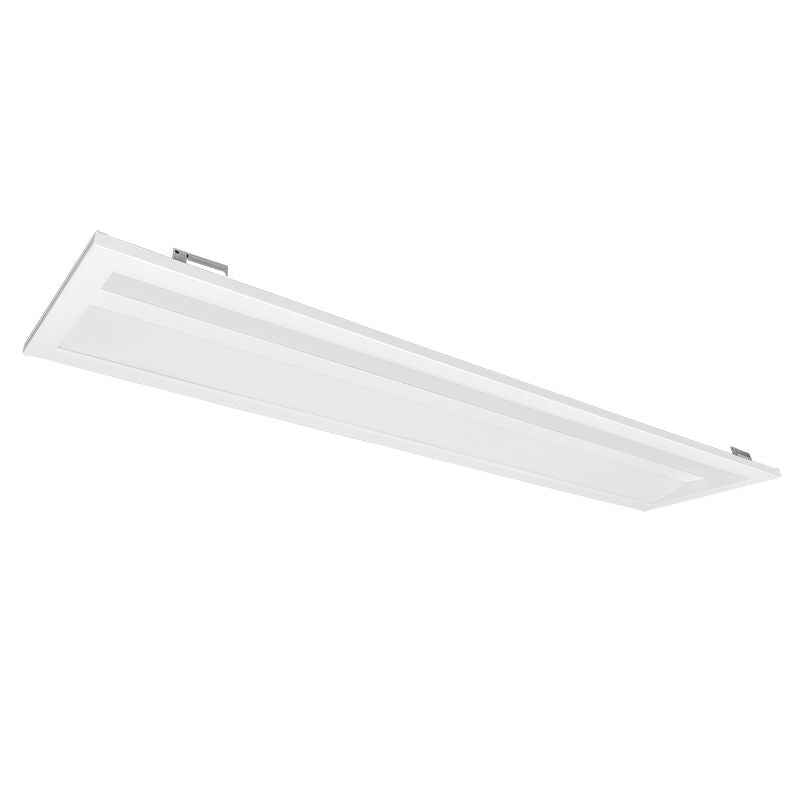

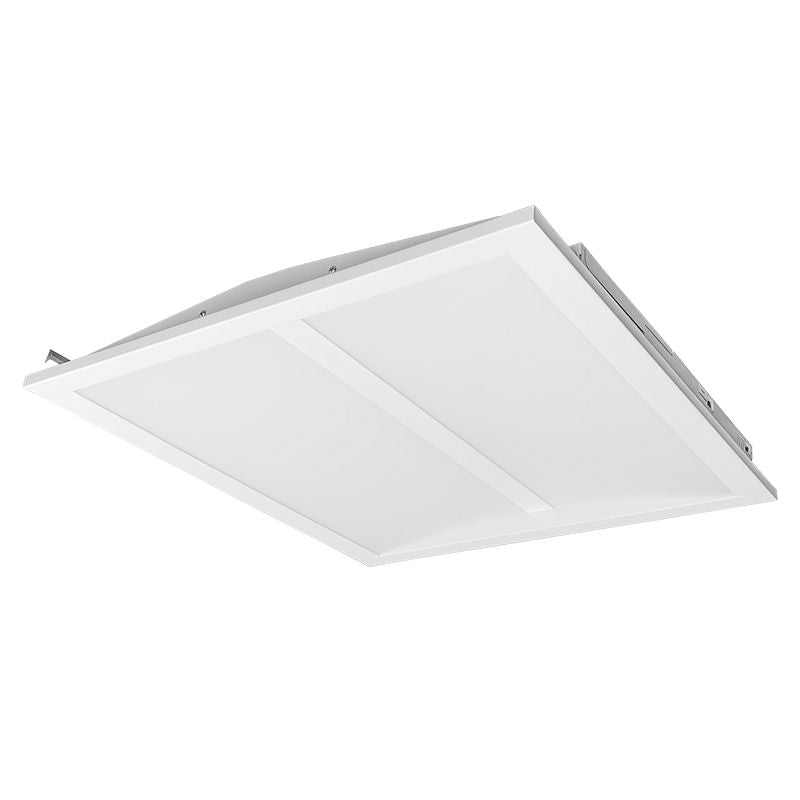

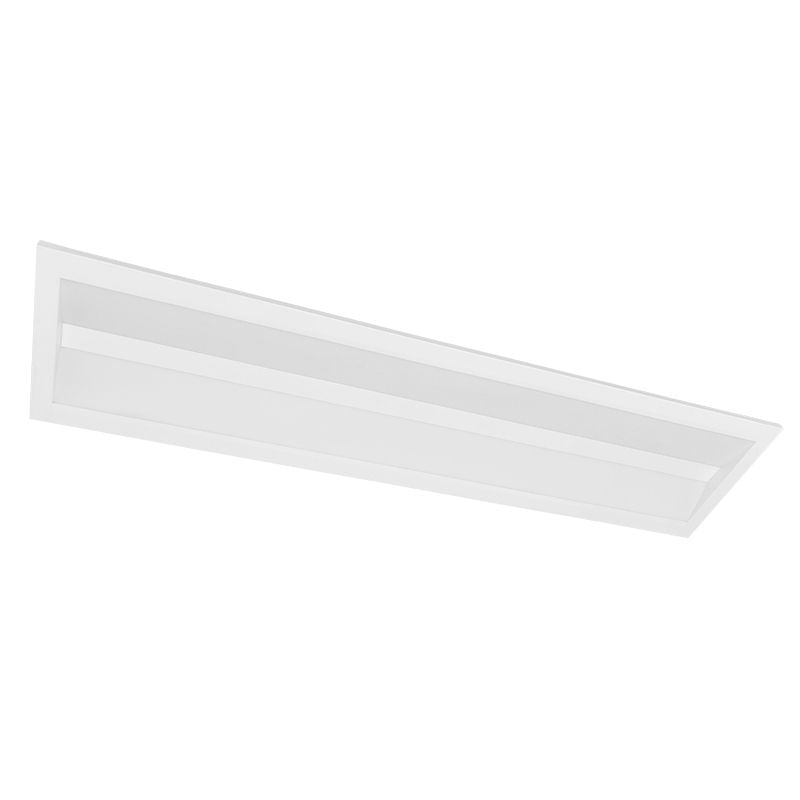

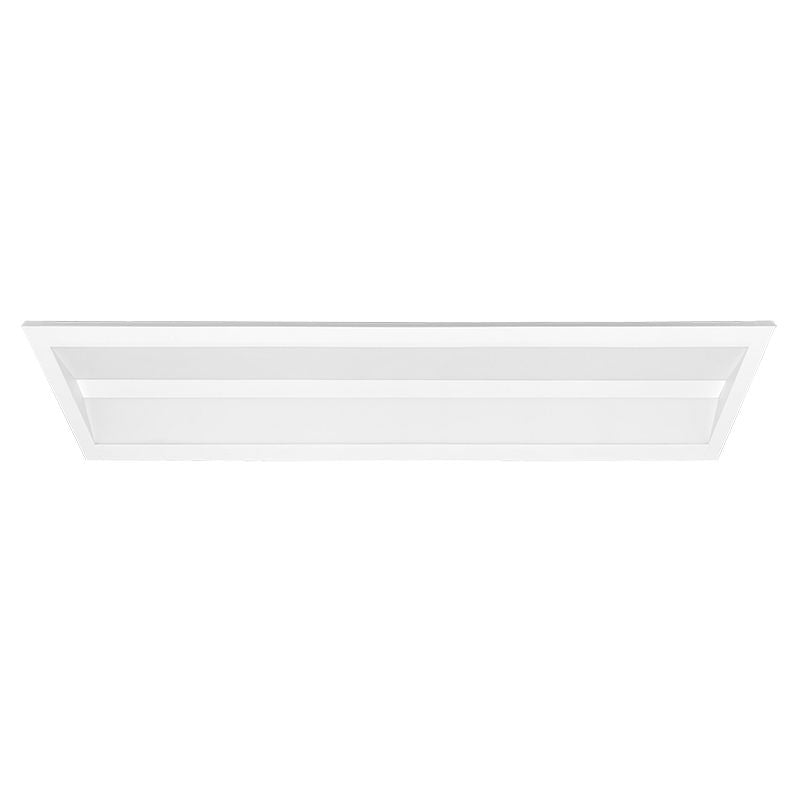

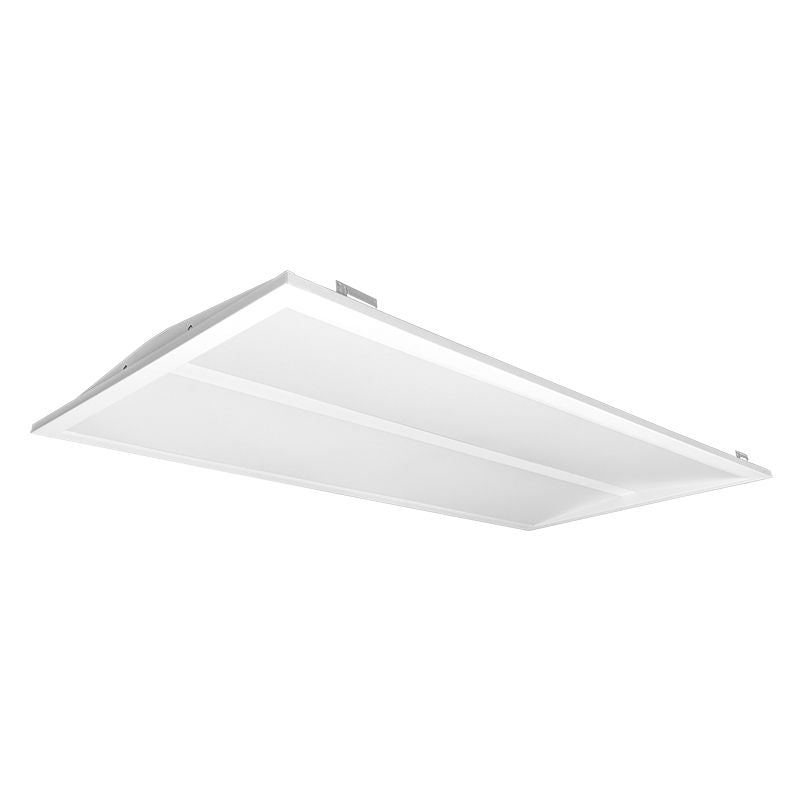

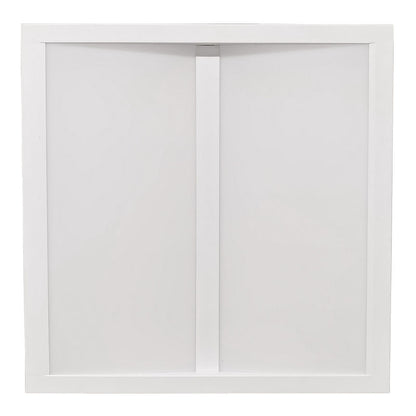

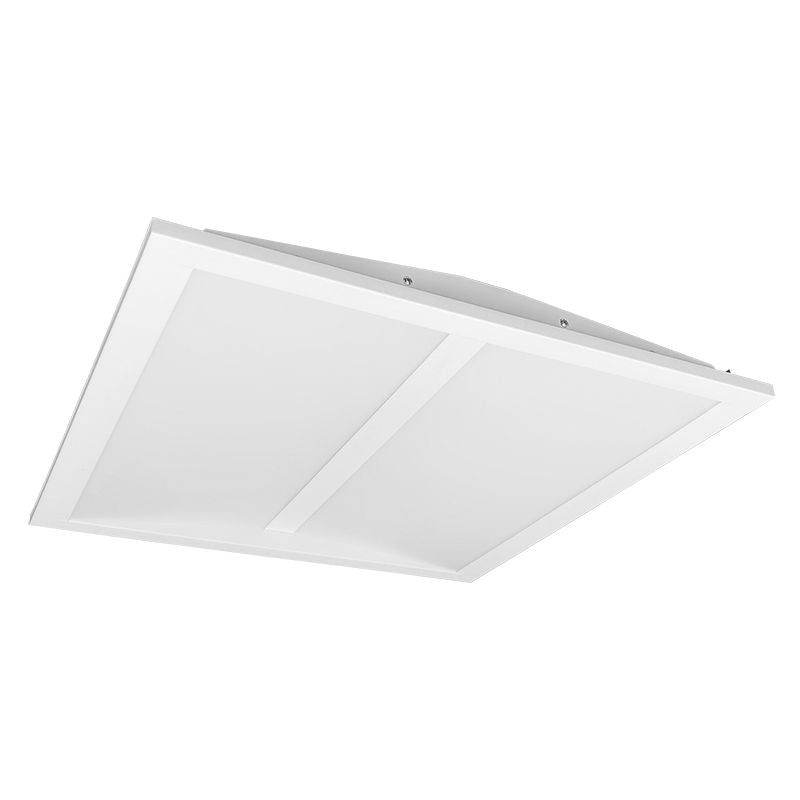

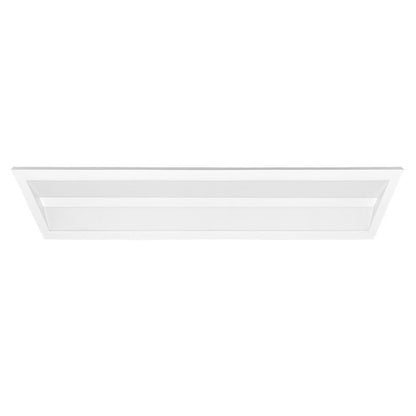

LTRM - Architectural Sloped-Lens Troffer

LTRM - Architectural Sloped-Lens Troffer

Technical Specs

• Voltage: 120-277VAC 50/60Hz
• Wattage: 25W/30W/36W/40W/45W/50W
• Power Factor: >0.92
• Efficacy: 125 LPW
• High Quality LED Chips Provide High Efficiency, Heat Dissipation, Stability, And Lumen Maintenance
• Individual, Pure Aluminum Heat Sinks Offers Heat Transmission Faster Than Die Cast Steel
• Driver Disconnect provided Where Required to Comply With US And Canadian Codes
• Performance Engineered Optical Lens Assembly Delivers Unique Beam Angles and Reduces Glare
• Polycarbonate Lens
• Operating Temp: -22°F to 104°F
• IP Rating: IP20 Indoor use only
• 7-Year Warranty
• Dimmable: 0~10V Dimming
• Multi CCT: Selectable Multi-CCT & Power Switches Inside The Driver Box
• Total Lumens: 3125LM-6250LM
• Color Temperatures: 3500K/4000K/5000K
• Color Rendering Index: CRI ? 80
• 70,000 Hours Rated Life

Applications

• Retail/Schools/Offices
• Healthcare/Conference rooms
• Hospitality/Corridors
• Reception areas/Foyer
• Library
