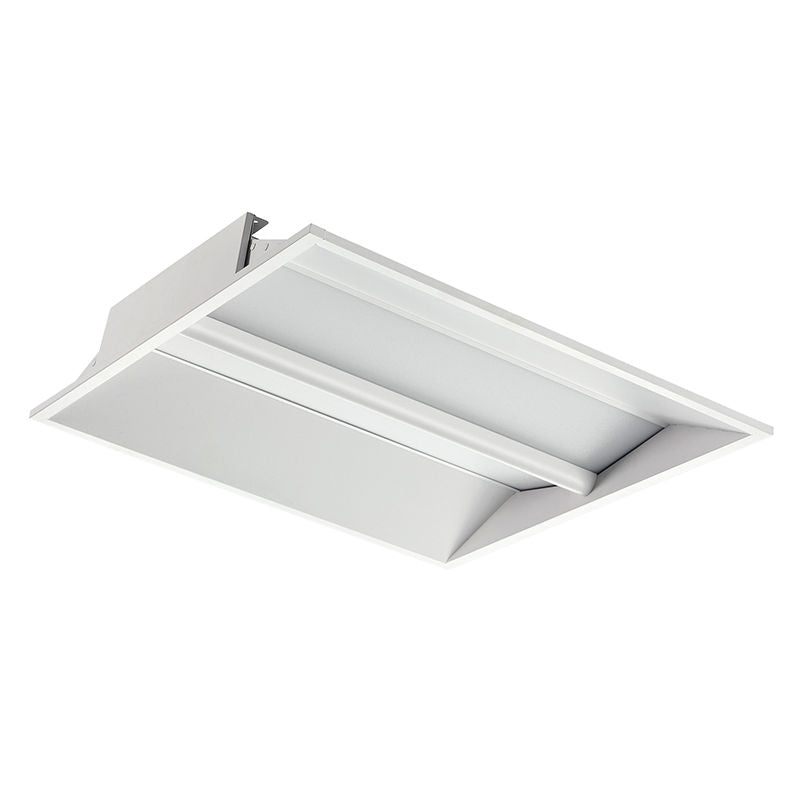

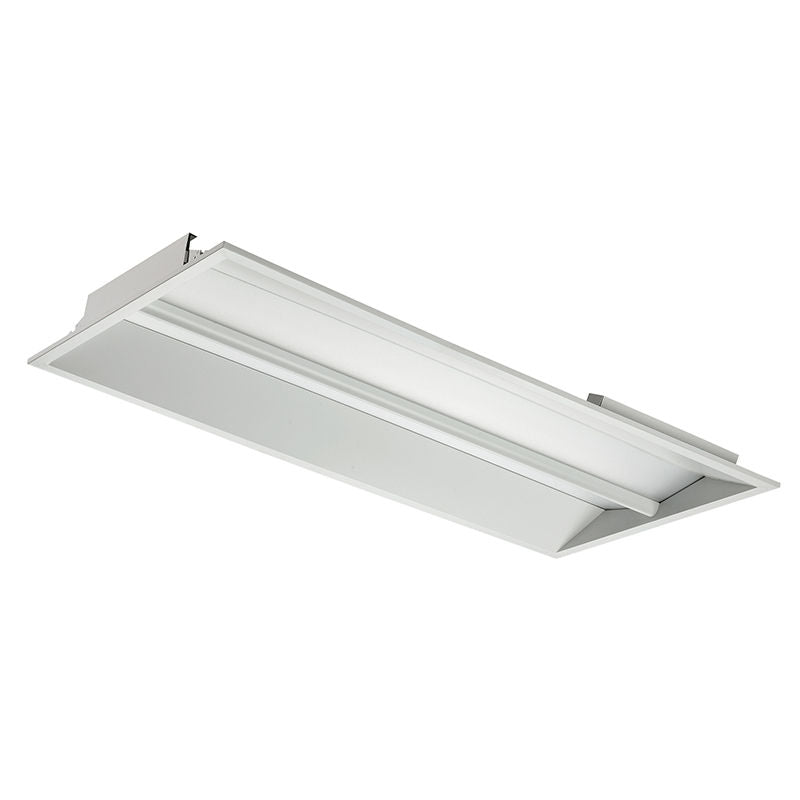

LTRW - Architectural Advanced Edge-Lit Wing Design Troffer

LTRW - Architectural Advanced Edge-Lit Wing Design Troffer

Technical Specs

• Voltage: 120-277VAC 50/60Hz
• Wattage: 24W/36W/42W/50W
• Power Factor: >0.92
• Efficacy: 115 LPW
• High Quality LED Chips Provide High Efficiency, Heat Dissipation, Stability, and Lumen Maintenance
• Individual, Pure Aluminum Heat Sinks Offers Heat Transmission Faster than Die Cast Steel
• Driver disconnect provided where required to comply with US and Canadian codes
• Performance Engineered Optical Lens Assembly Delivers Unique Beam Angles and Reduces Glare
• Polycarbonate Lens
• Operating Temp: -22°F to 104°F
• IP Rating: IP20 Indoor use only
• 7-Year Warranty
• Dimmable: 0~10V Dimming
• Multi CCT: Selectable Multi-CCT & Power Switches Inside the Driver Box
• Total Lumens: 2760LM-5750LM
• Color Temperatures: 3000K/3500K/4000K/5000K
• Color Rendering Index: CRI ? 80
• 70,000 Hours Rated Life

Applications

• Retail/Schools/Offices
• Healthcare/Conference rooms
• Hospitality/Corridors
• Reception areas/Foyer
• Library
