SCX-SQUARE - SCX 2X2 & 2X4 Linear Lights

SCX-SQUARE - SCX 2X2 & 2X4 Linear Lights

Technical Specs

• Voltage: 120-277VAC 50/60Hz
• Wattage: 40W/60W/80W/90W/120W
• Power Factor: >0.95
• Total Harmonic Distortion: ? 20 %
• LPW: 110 LM/W
• Aluminum Housing with Matte White Finish
• Custom Colors Available
• Lens Snaps into Housing

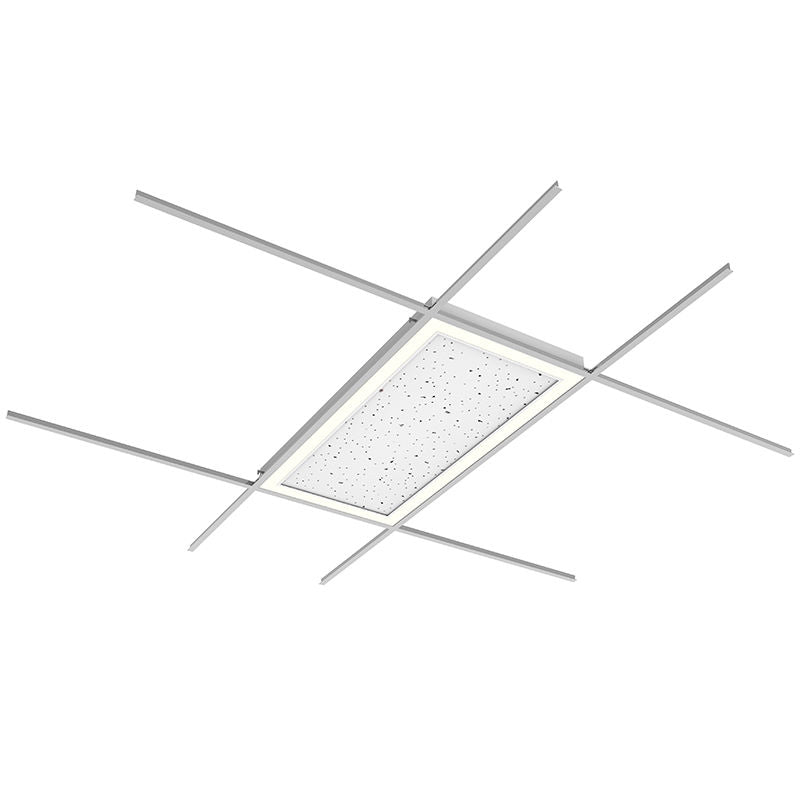

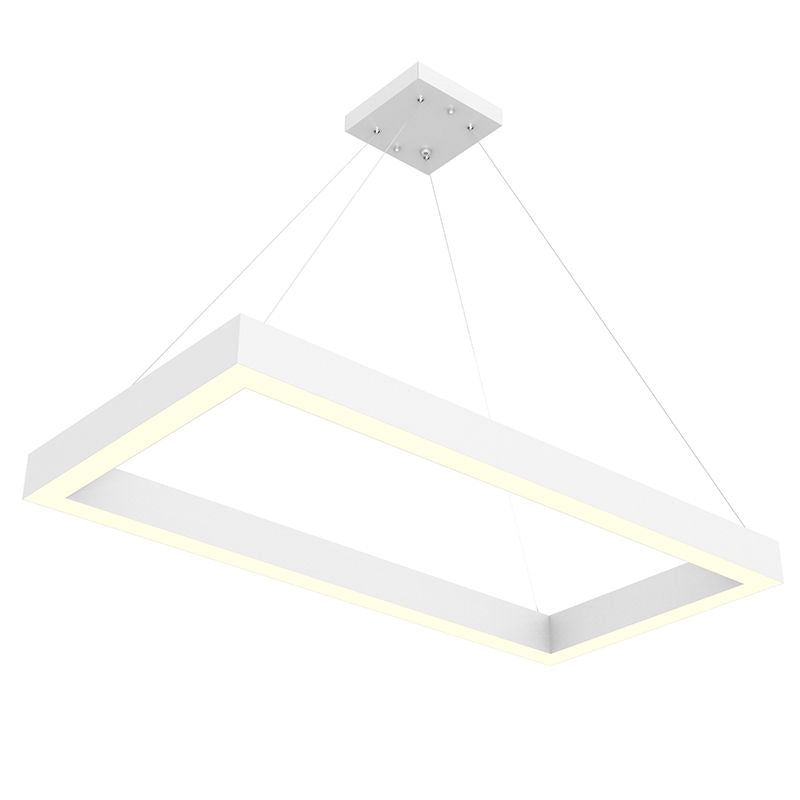

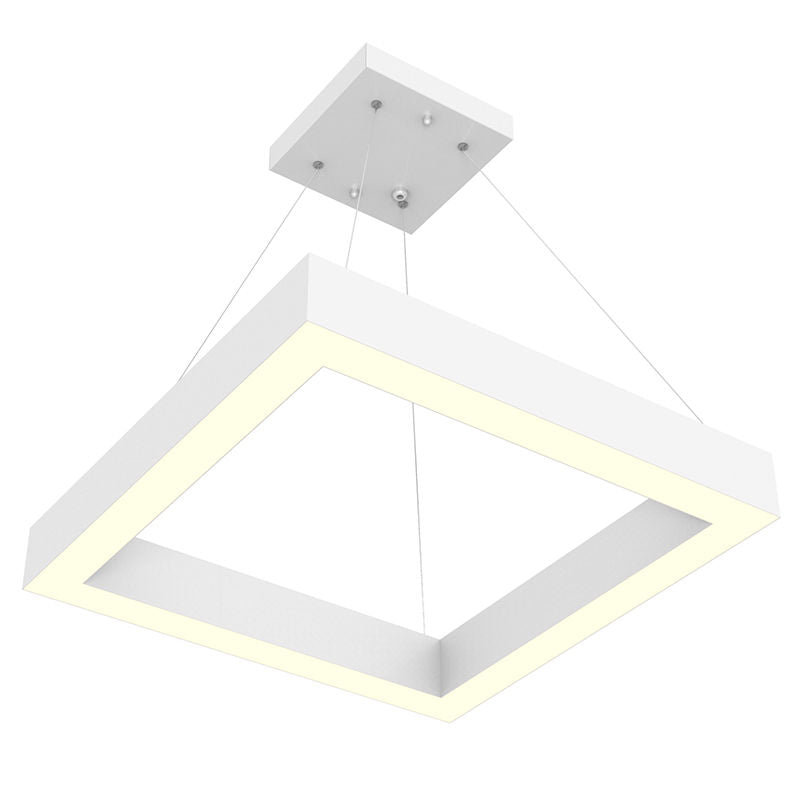

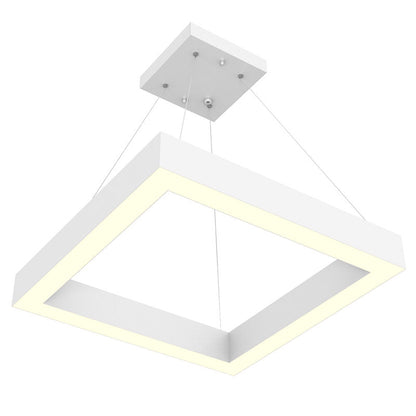

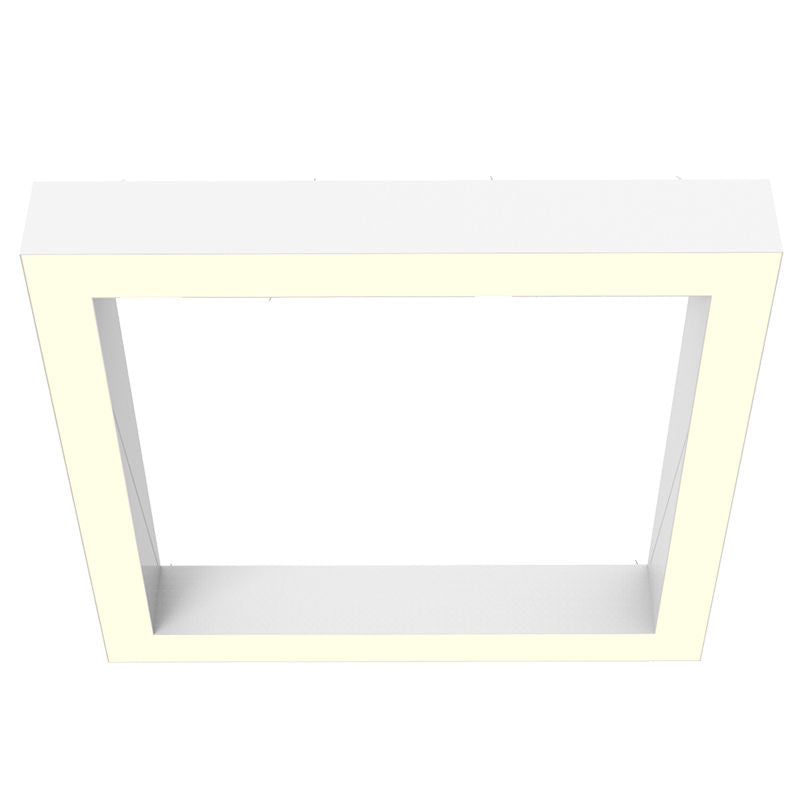

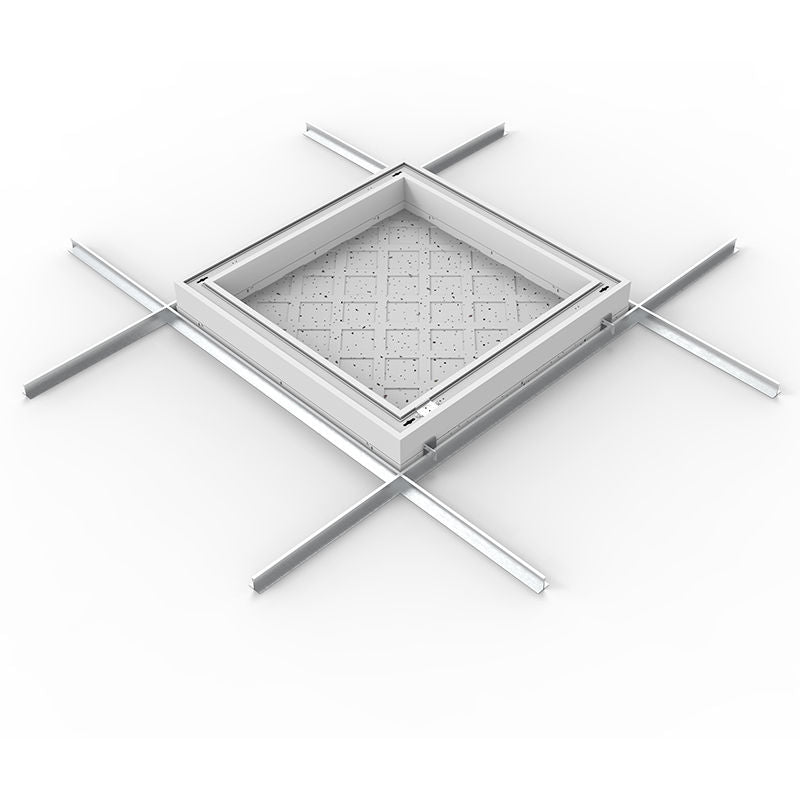

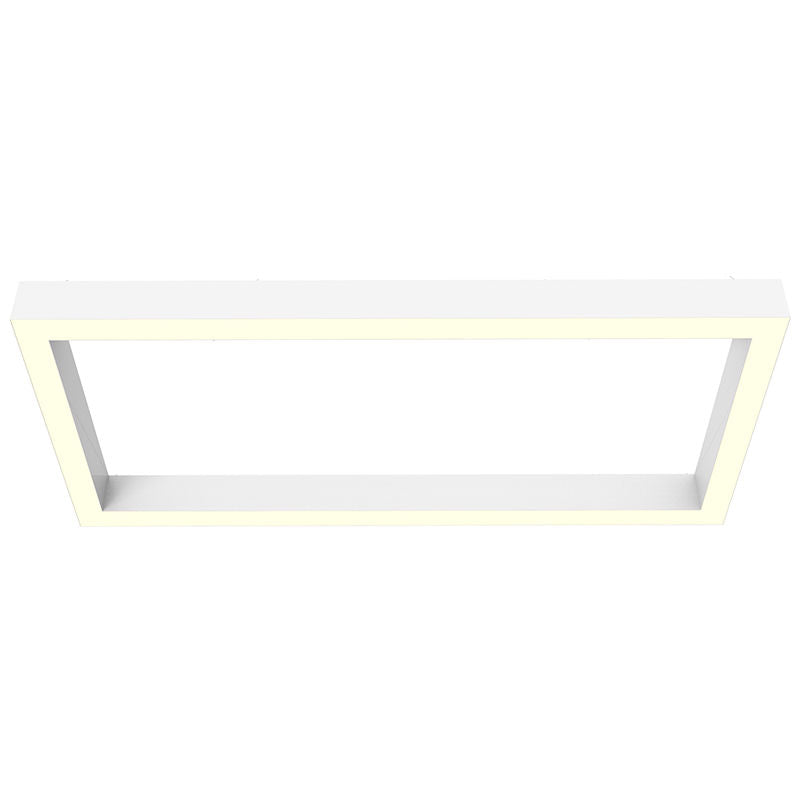

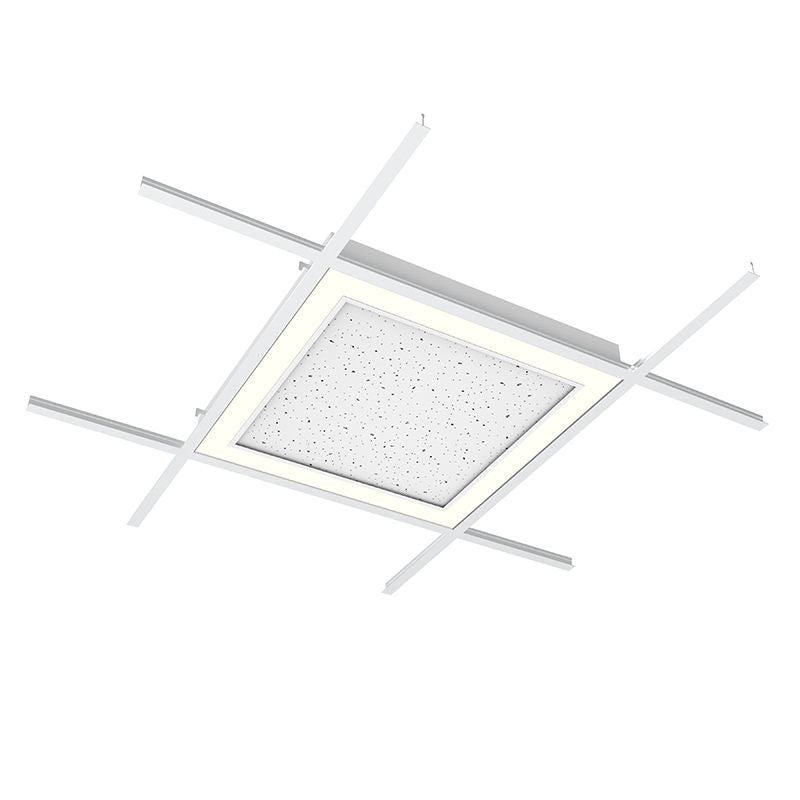

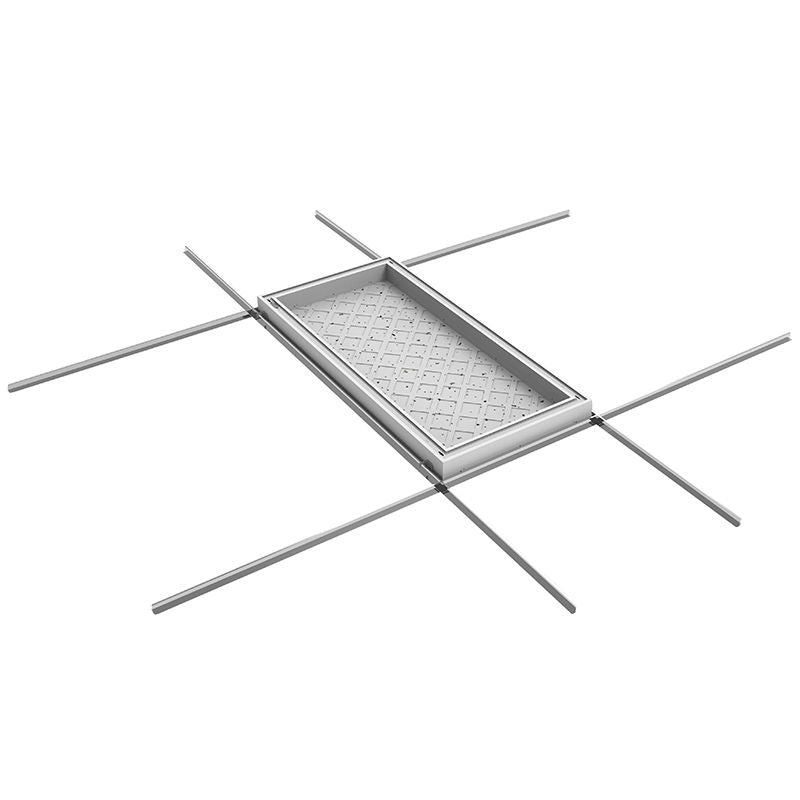

• Mounting Options: Surface, Suspended, Recessed
• IP Rating: IP54 Suitable for Damp Location
• Operating Temperature: -13°F~104°F
• 5-Year Warrant
• MCTP: Multi Color Temperature And Power (Selectable Switch Inside Fixture)
• Dimmable: 0~10V Dimming
• Total Lumens: 4400LM/6600LM/8800LM/9900LM/13200LM
• Color Temperatures: 3000K/3500K/4000K/5000K
• Color Rendering Index: CRI ? 80
• Rated Life: 50,000 Hrs
• Beam Angle: 104.8°(H) x 100.5°(V)

Applications

• Ideal for offices, hotels, corridors, saloons, libraries, meeting rooms, conference halls, and the best solution for modern lighting solutions
• It can be used in any indoor applications
