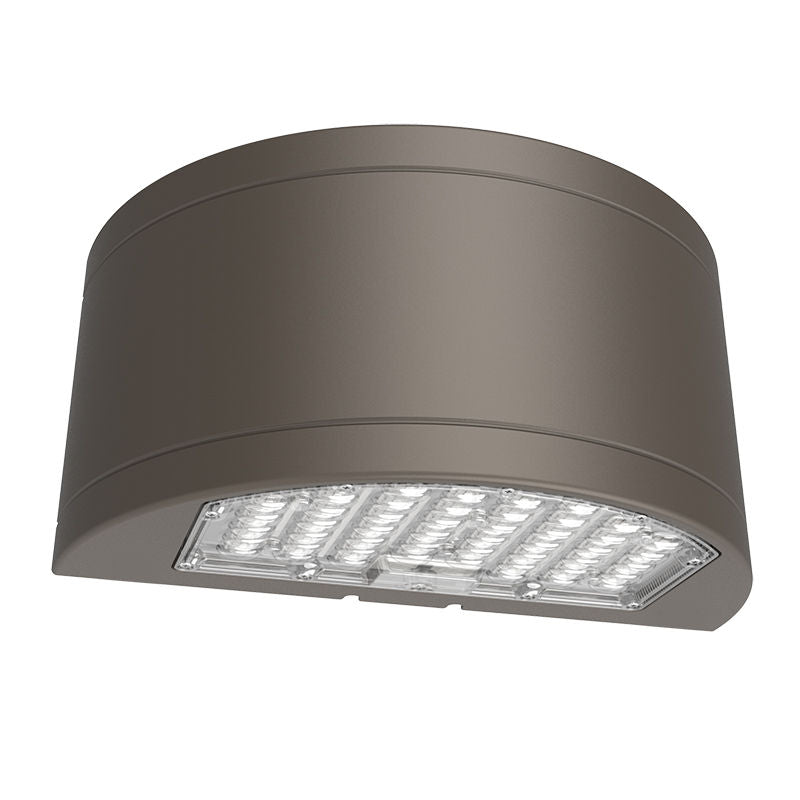

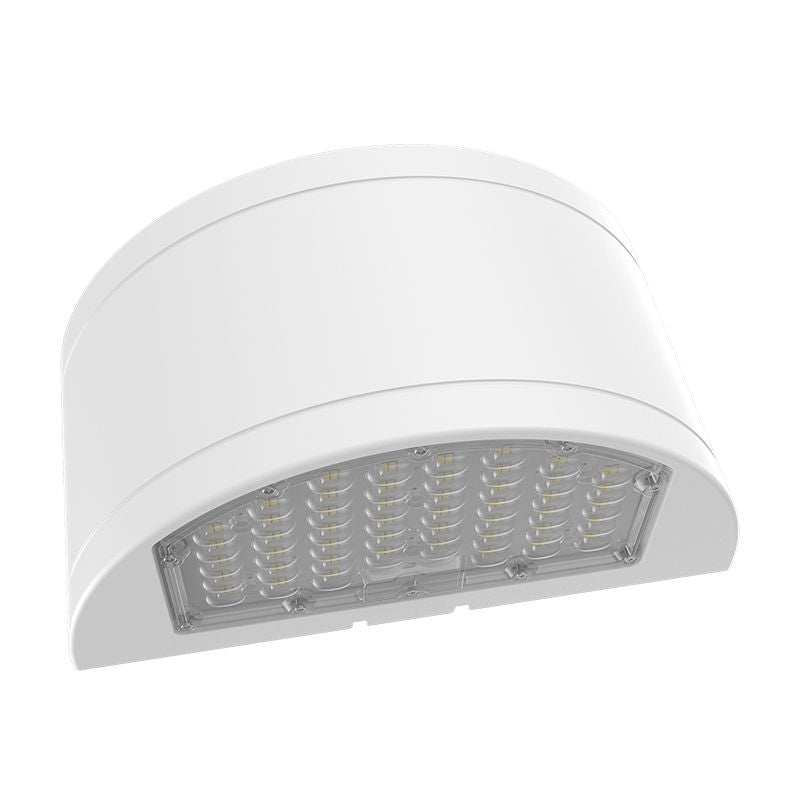

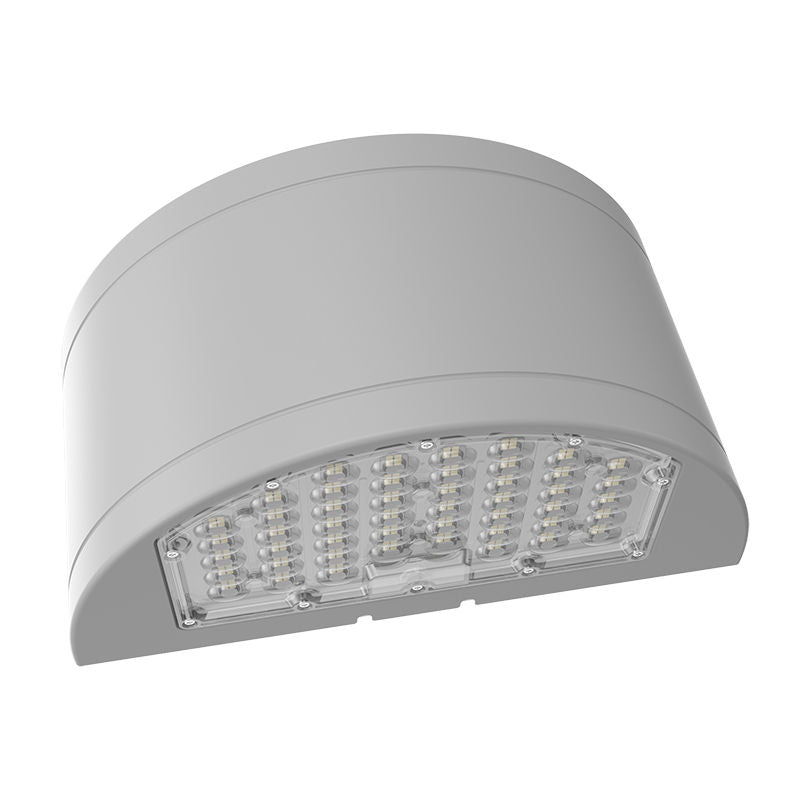

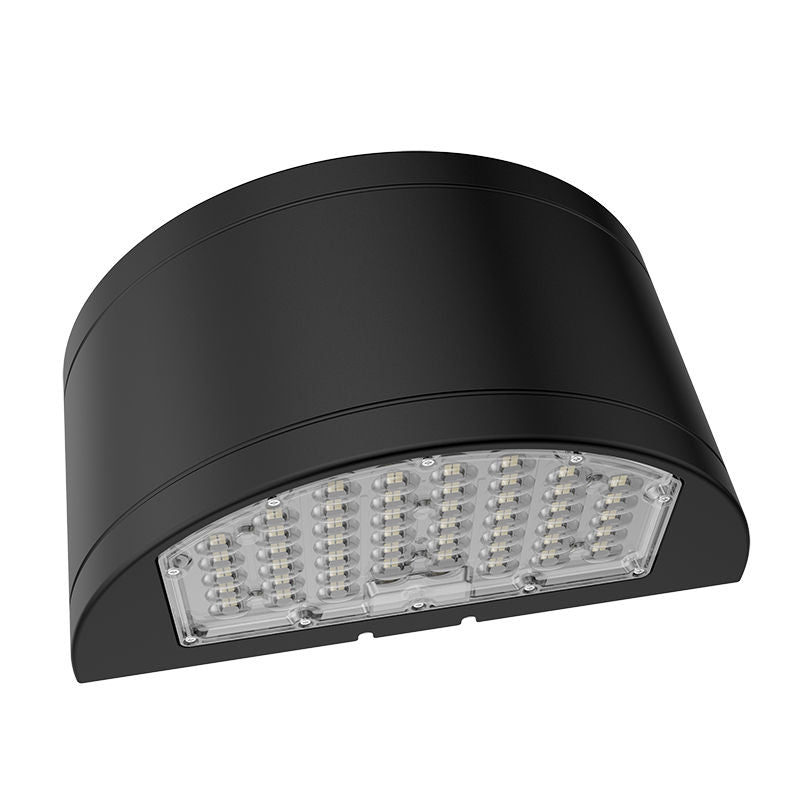

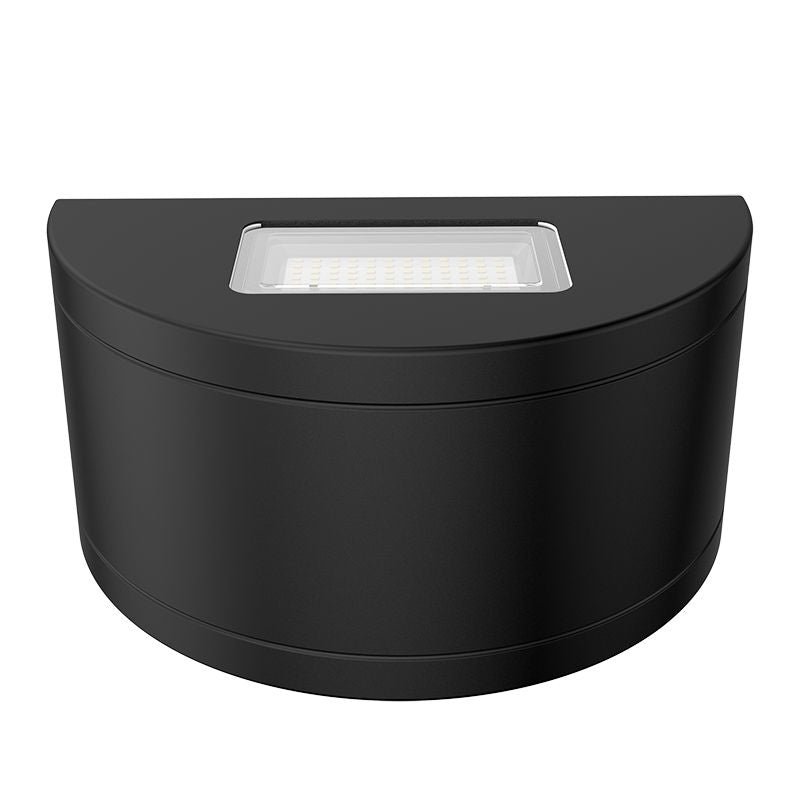

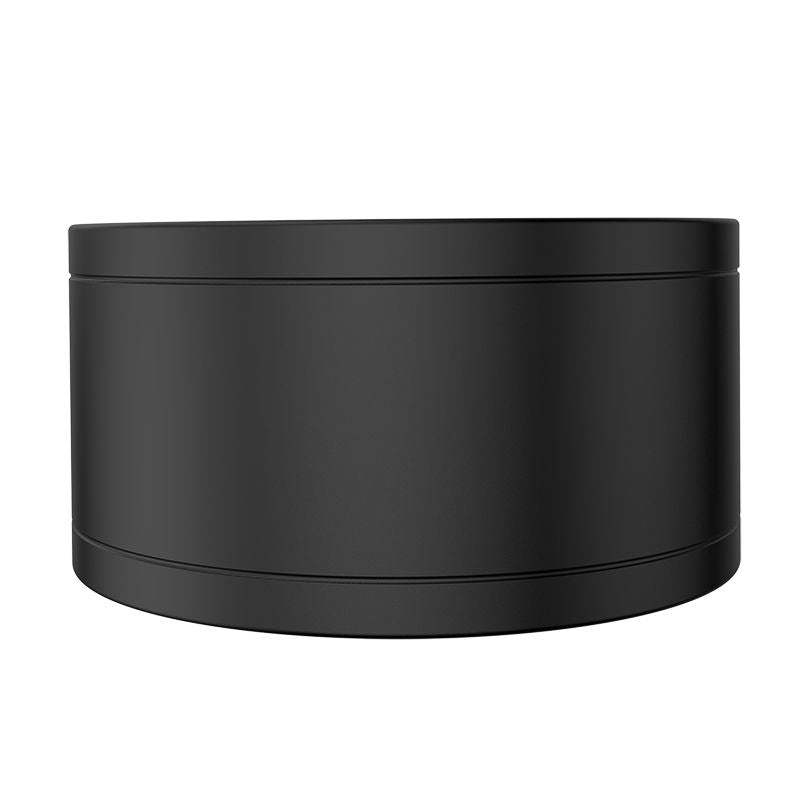

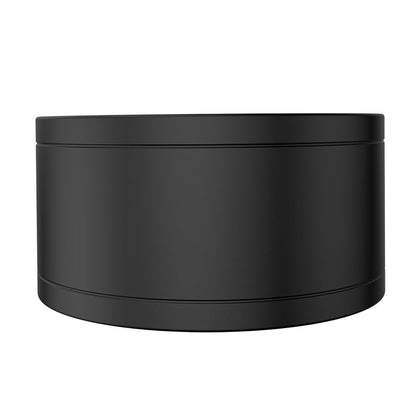

Westgate WHCX-24-40W-MCTP Cylinder Wall Pack, Power And CCT Adjustable - 30K/40K/50K - 24W/62W/48W - 145LM/W

Westgate WHCX-24-40W-MCTP Cylinder Wall Pack, Power And CCT Adjustable - 30K/40K/50K - 24W/62W/48W - 145LM/W

Technical Specs

• Voltage: 120-277VAC 60Hz
• Wattage: 24W/32W/40W/48W/64W/80W
• Power Factor: >0.95
• Efficacy: 145 LPW
• Twist-Lock Zhaga Socket Pre-Installed. See Motion Sensor Accessories
• Die-Cast Aluminum With Powder Coat Finish (Dark Bronze)
• DC Button Photocell with ON/OFF switch Included

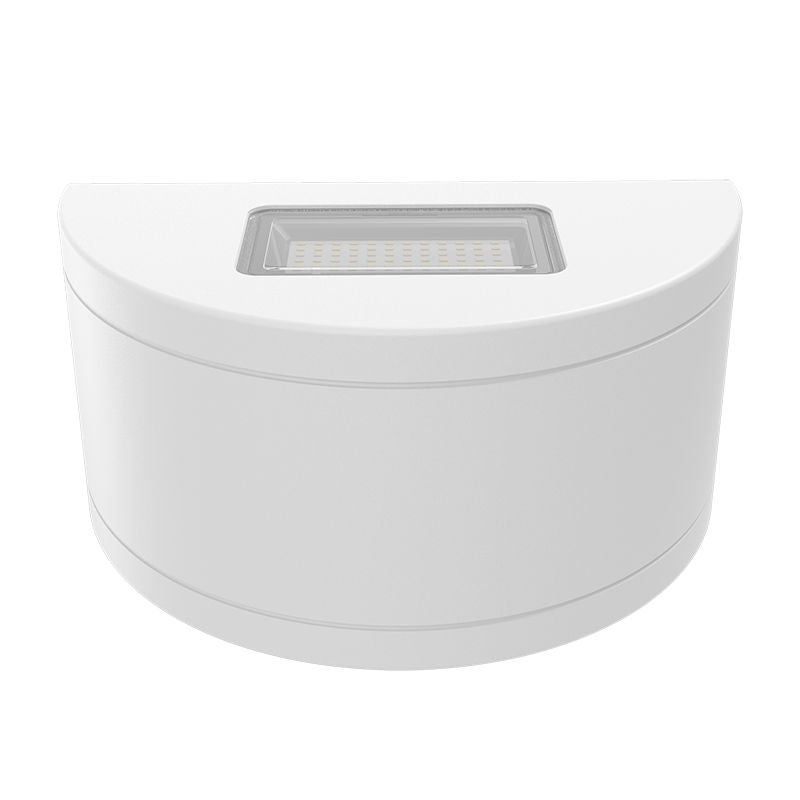

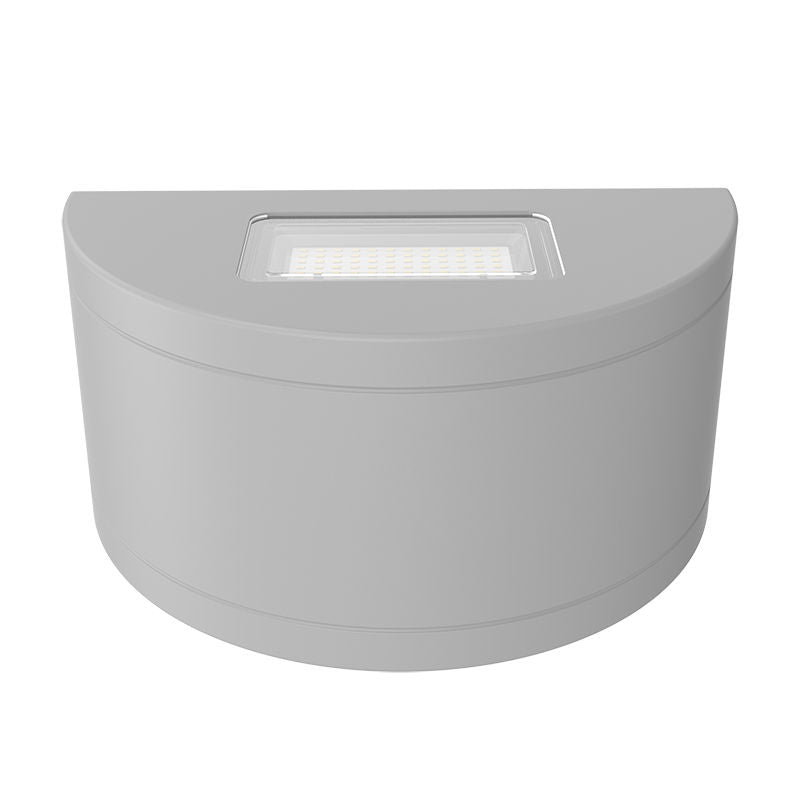

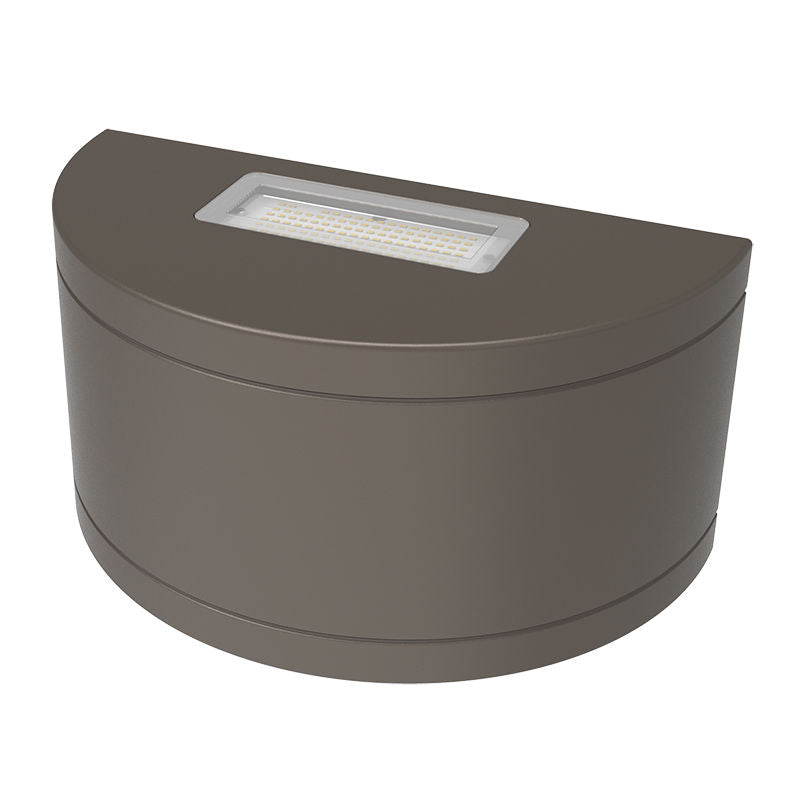

• Integrated Uplight, Can be Controlled By The Switch. UP: 10% DOWN: 90%
• High Light Transmittance, Anti-UV and Fire Resistant Shatterproof PC Lens
• Operating Temperature: -4ºF to 104ºF
• Full Cutoff, Dark Sky Compliant
• IP 65,Wet Location
• 7-Year Warranty
• Dimming: 0~10V Dimmable
• Multi CCT and Power (Switches are inside fixture)
• The Type III Distribution Is Used for Wide WalkWays, on Ramps and Entrance Roadways, As Well As Other Long, Narrow Lighting
• Total Lumens: 5800LM-11600LM Max.
• Color Temperatures: 3000K/4000K/5000K
• Color Rendering Index: CRI ? 80
• Rated Life: 70,000 Hrs

Applications

• LED Wall Pack Light series can be widely used as Exterior or Interior LED lighting for Hotels, Garages, Commercial Buildings, Public areas, Schools and Hospitals, etc.
