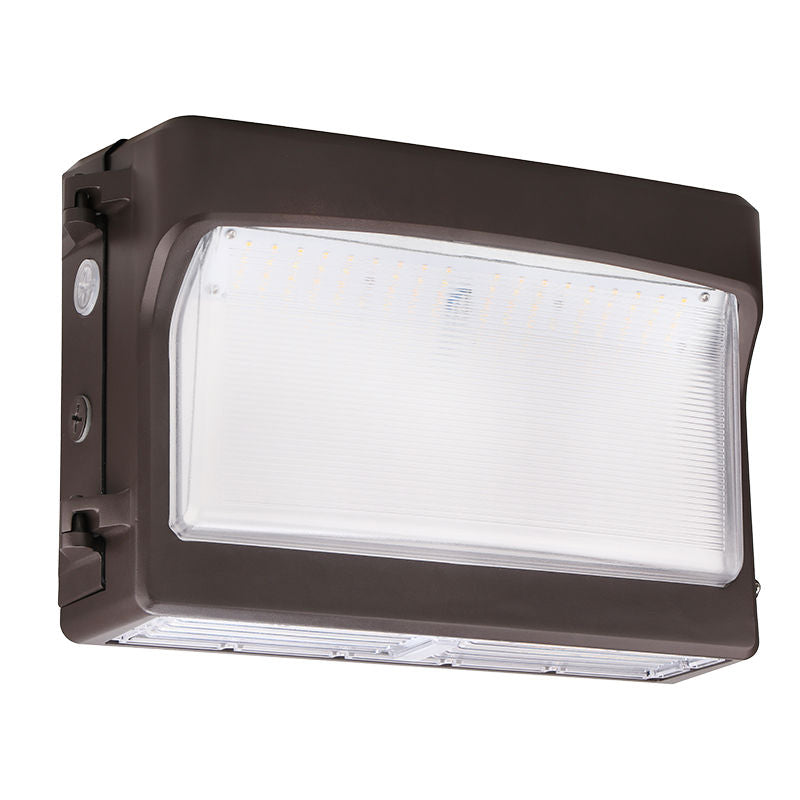

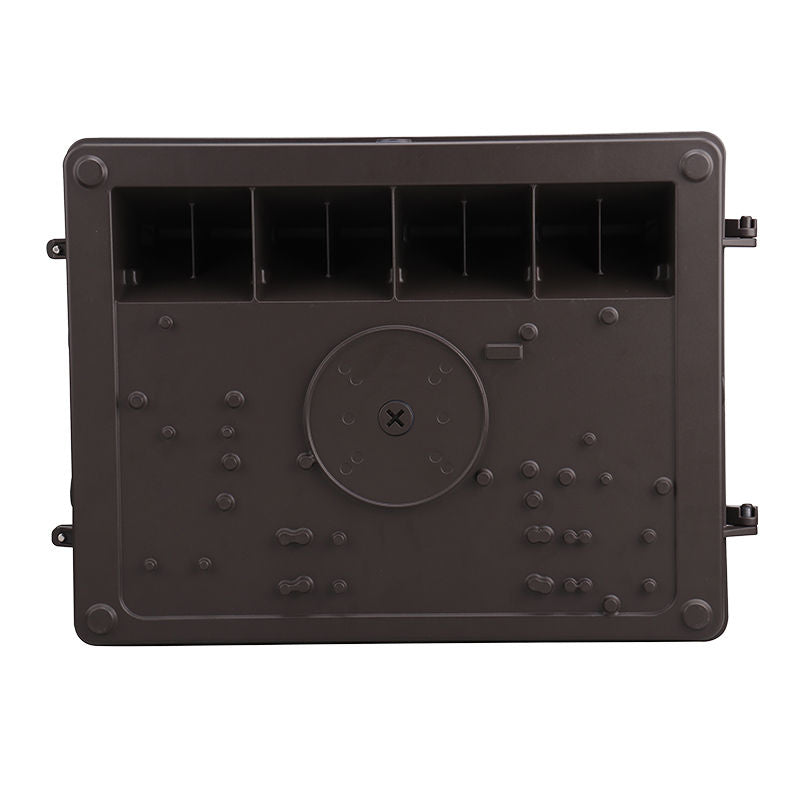

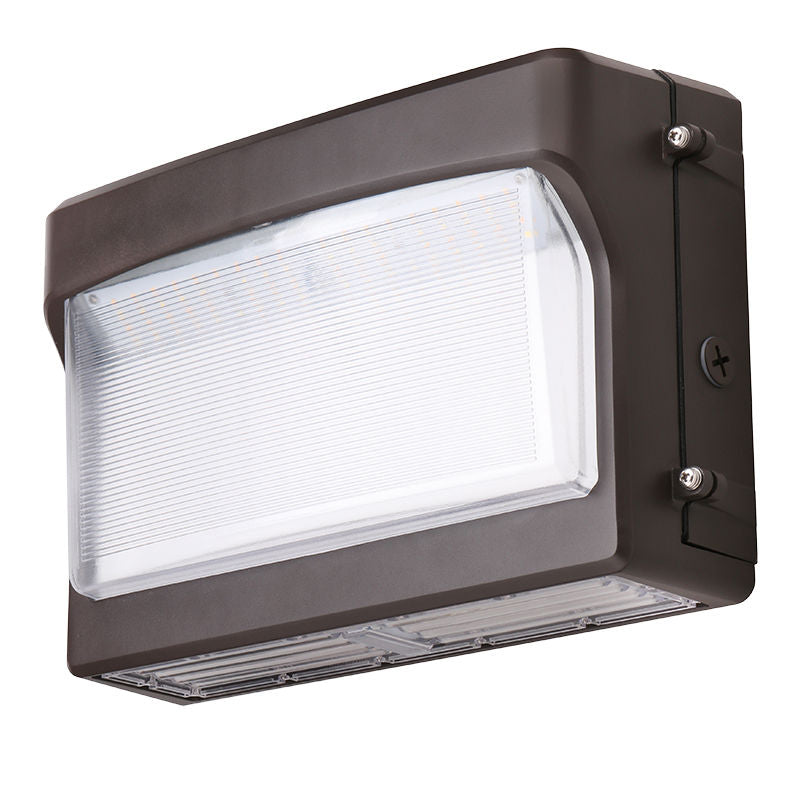

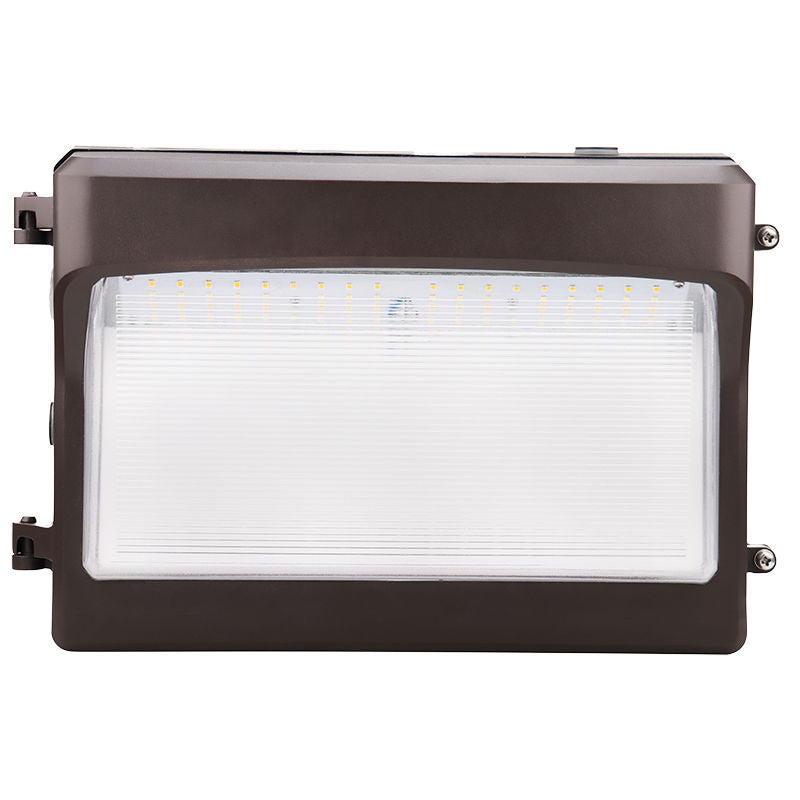

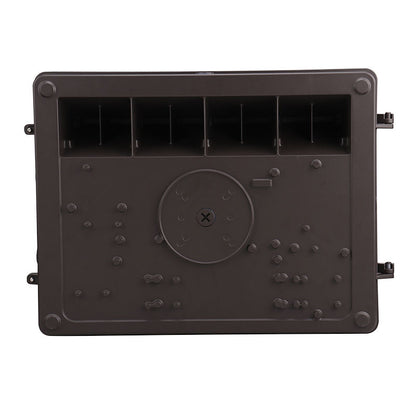

Westgate WPAX 60W/80W/100W LED Adjustable Cut-Off Wall Pack WPAX-100W-MCTP

Westgate WPAX 60W/80W/100W LED Adjustable Cut-Off Wall Pack WPAX-100W-MCTP

Technical Specs

• Voltage: 120-277V AC 60Hz
• Wattage: 60W/80W/100W
• Power Factor: >0.9
• THD: <20%
• Efficacy: 130 LPW
• Die-Cast Aluminum With Powder Coat Finish
• High Light Transmittance, Anti-UV and Fire Resistant Shatterproof PC Lens
• DC Button Photocell with ON/OFF switch Included
• Two 1/2” Knockouts on Each Side
• Operating Temperature: -40ºF -113ºF
• Wet Location
• 7-Year Warranty
• IP65
• Dimming: 0~10V Dimmable
• Multi CCT and Power (Switches are inside fixture)
• Lumileds 2835, High CRI.
• Total Lumens: 13000LM Max
• Color Temperatures: 3000K/4000K/5000K
• Color Rendering Index: CRI ? 80
• Beam Angle: H127° x V85°
• Rated life: 70,000 Hrs

Applications

• Entrance Lighting
• Courtyard Lighting
• Industrial Lighting
• Outdoor Landscape Lighting
• Hotel Lighting
• Wall Lighting
• Banks, ATM Stands, etc.
